CVM-46

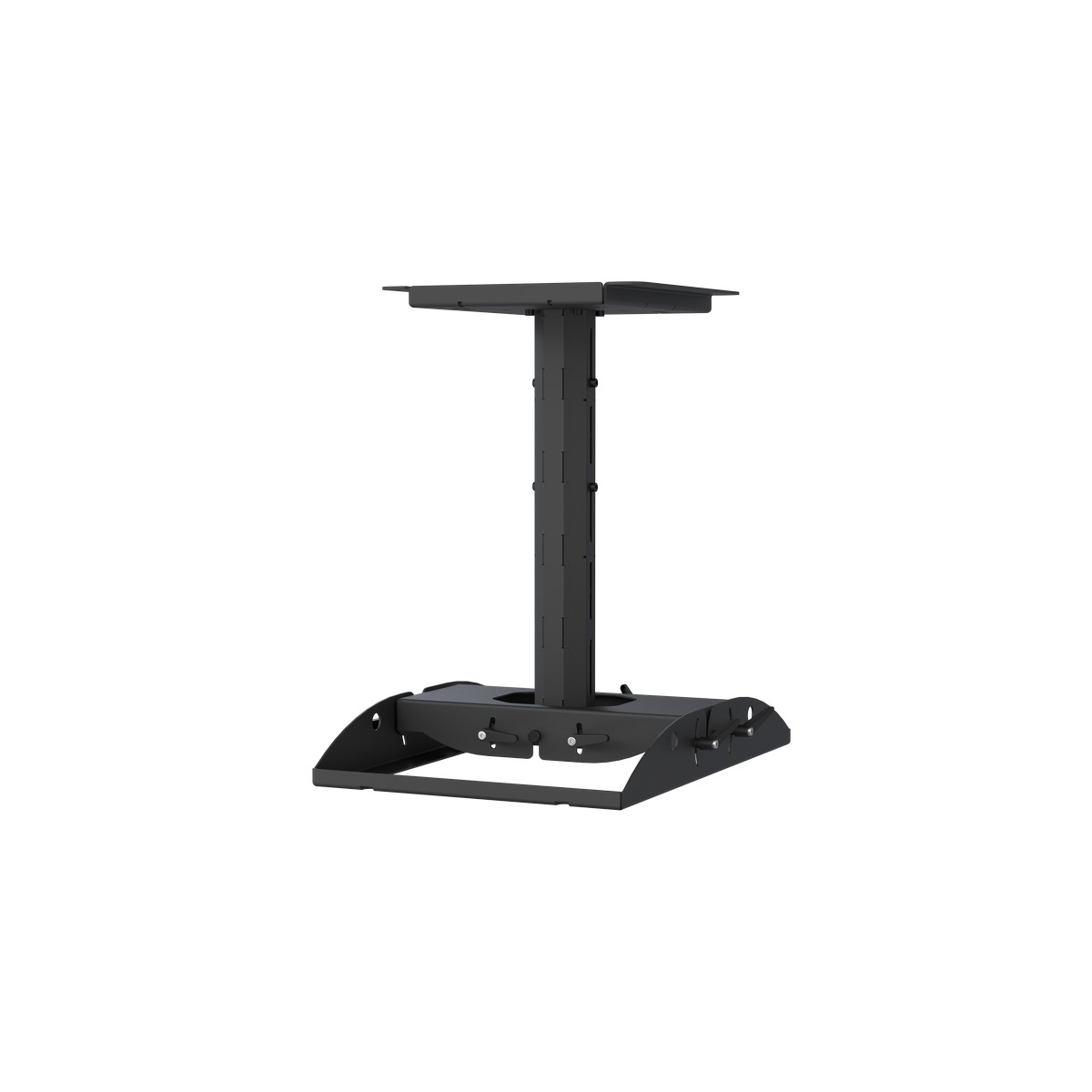

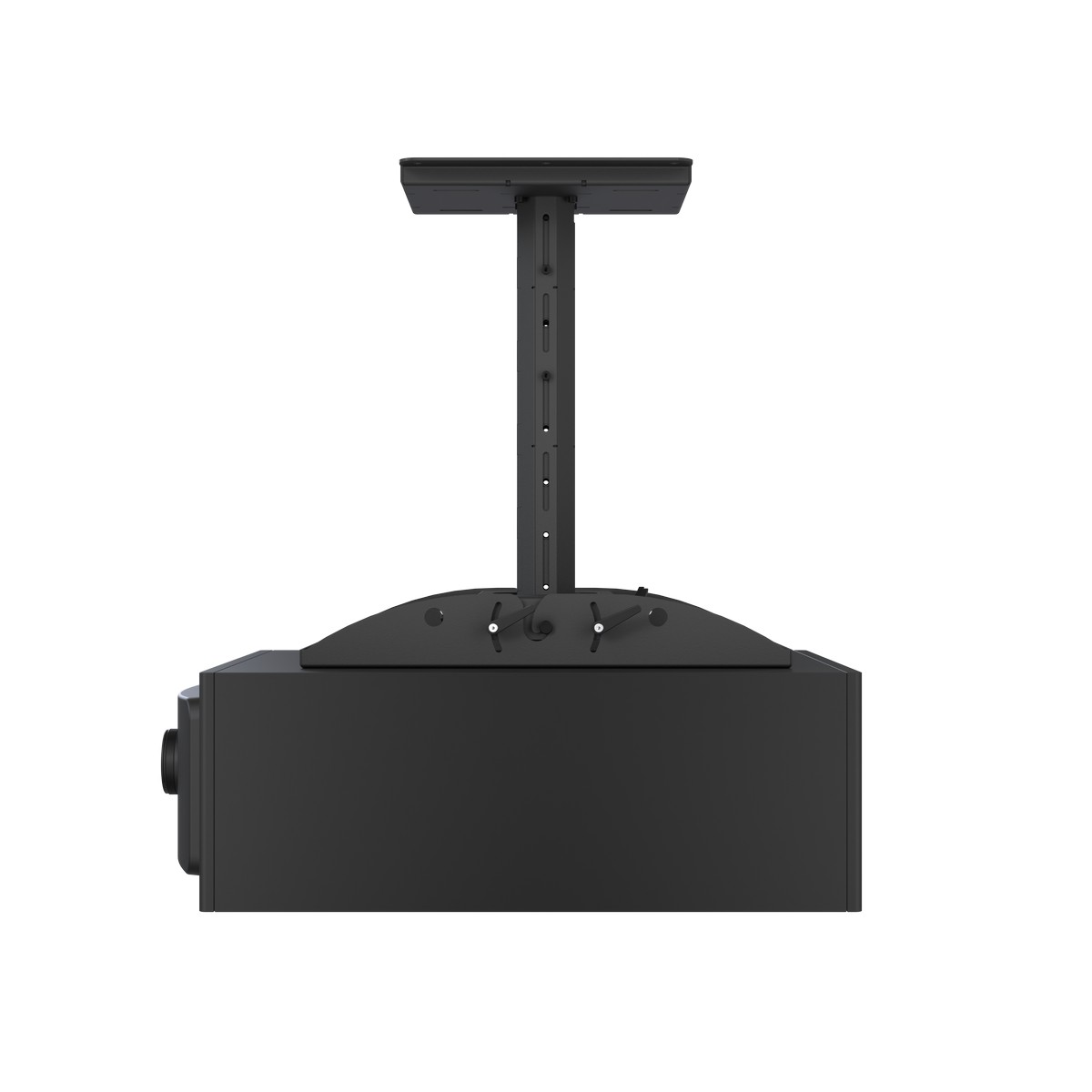

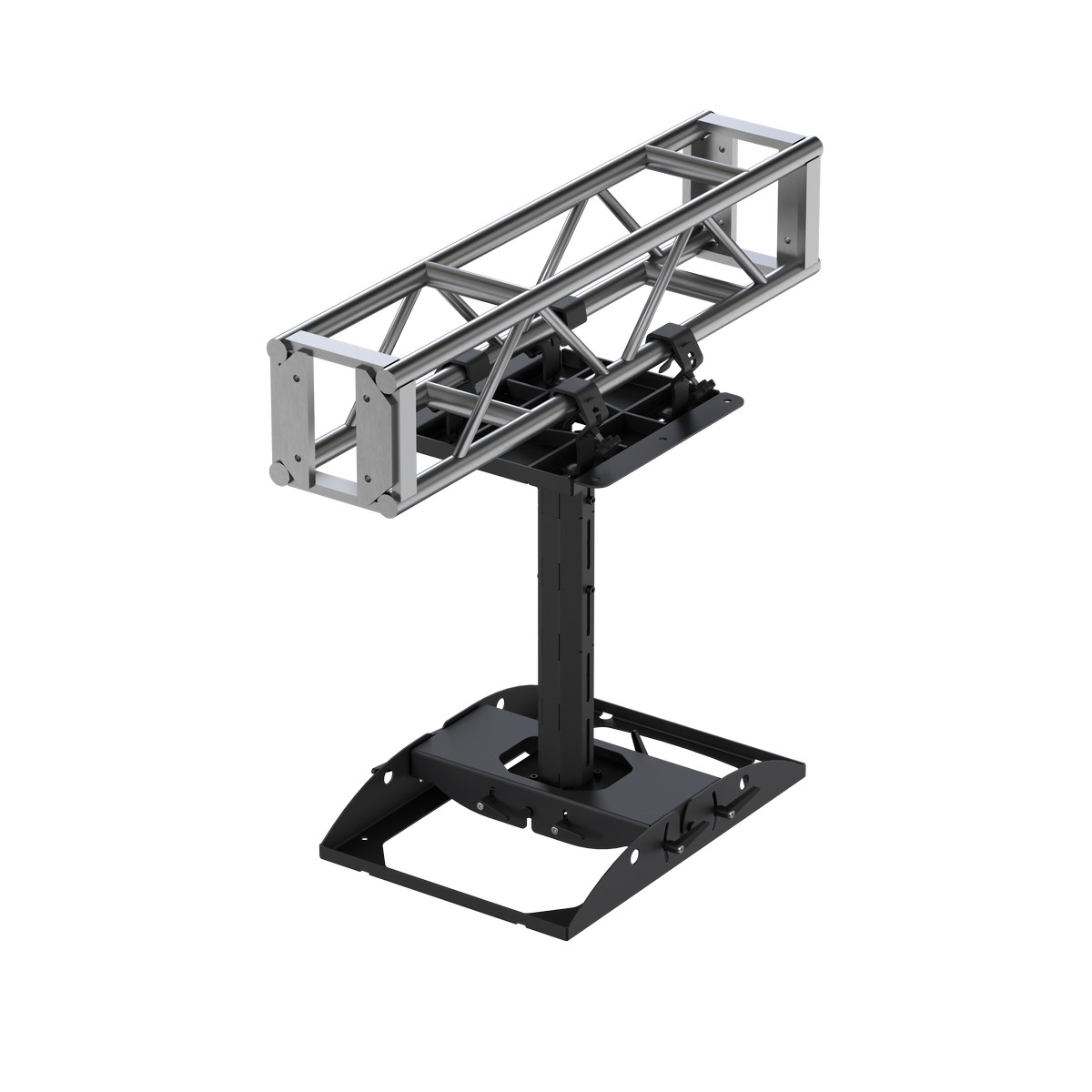

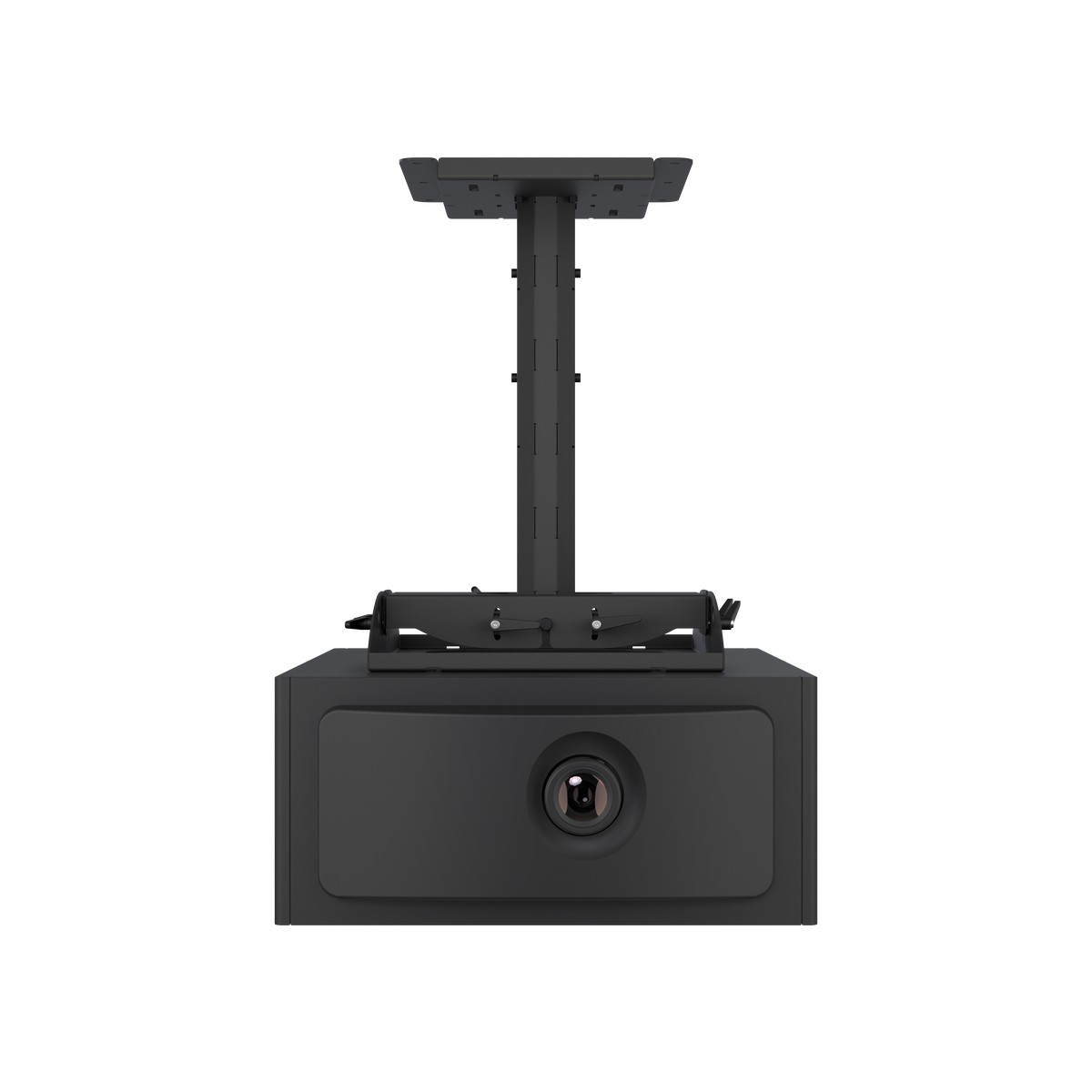

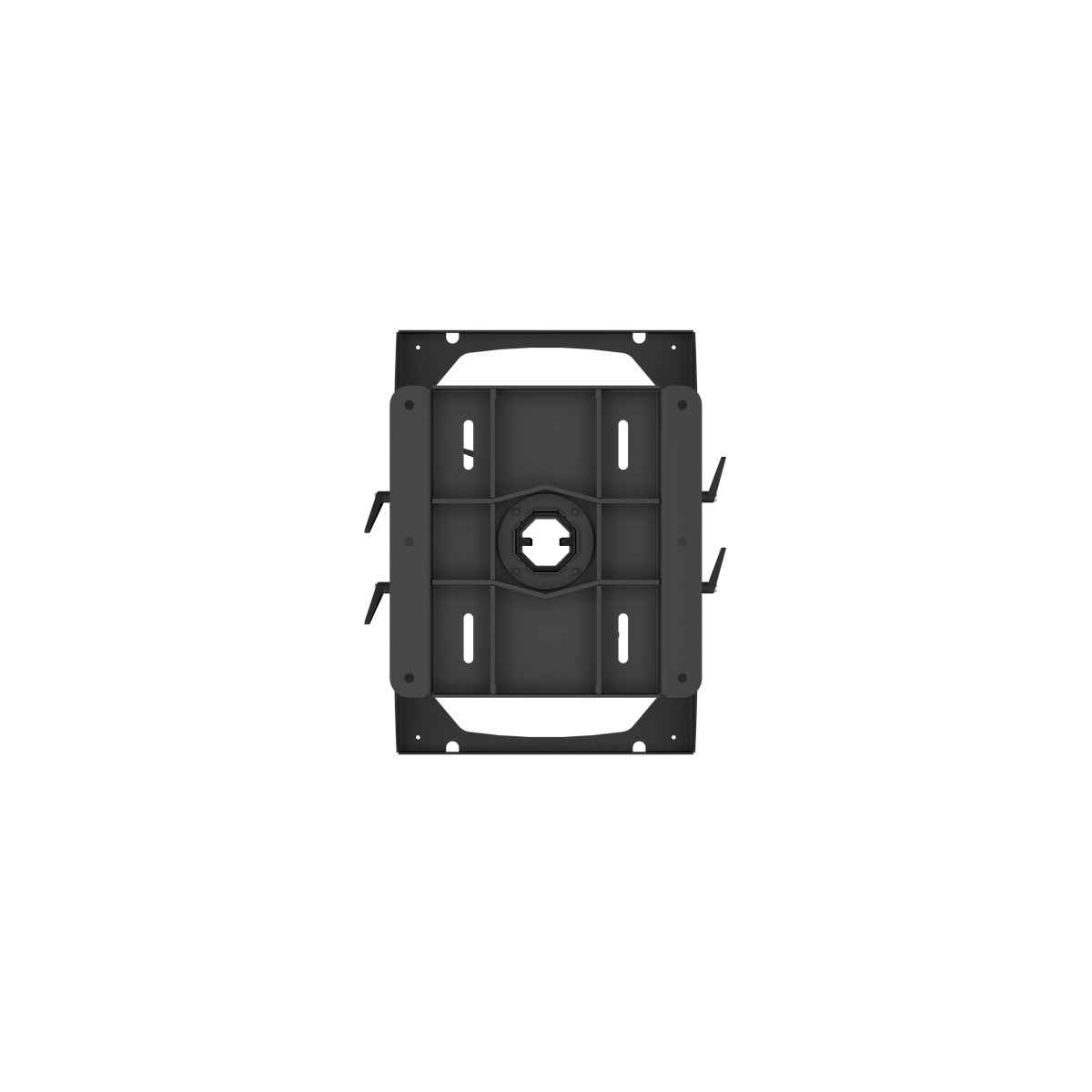

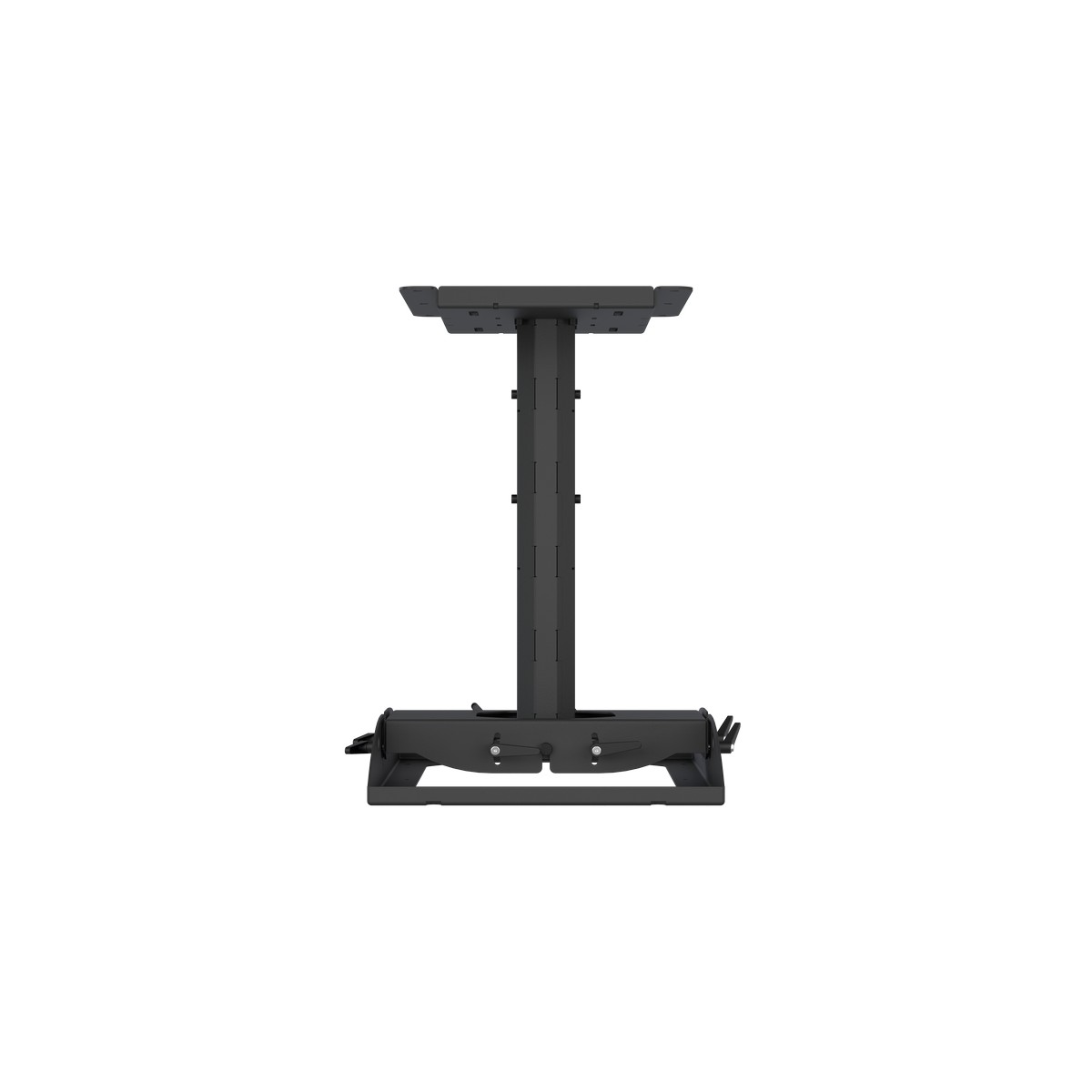

The CVM-46 is a ceiling mount for the NEC NC603L projector, ideal for commercial and educational installations. With its extension arm, it allows to creation of the perfect educational setting, commercial installation, or cinema.

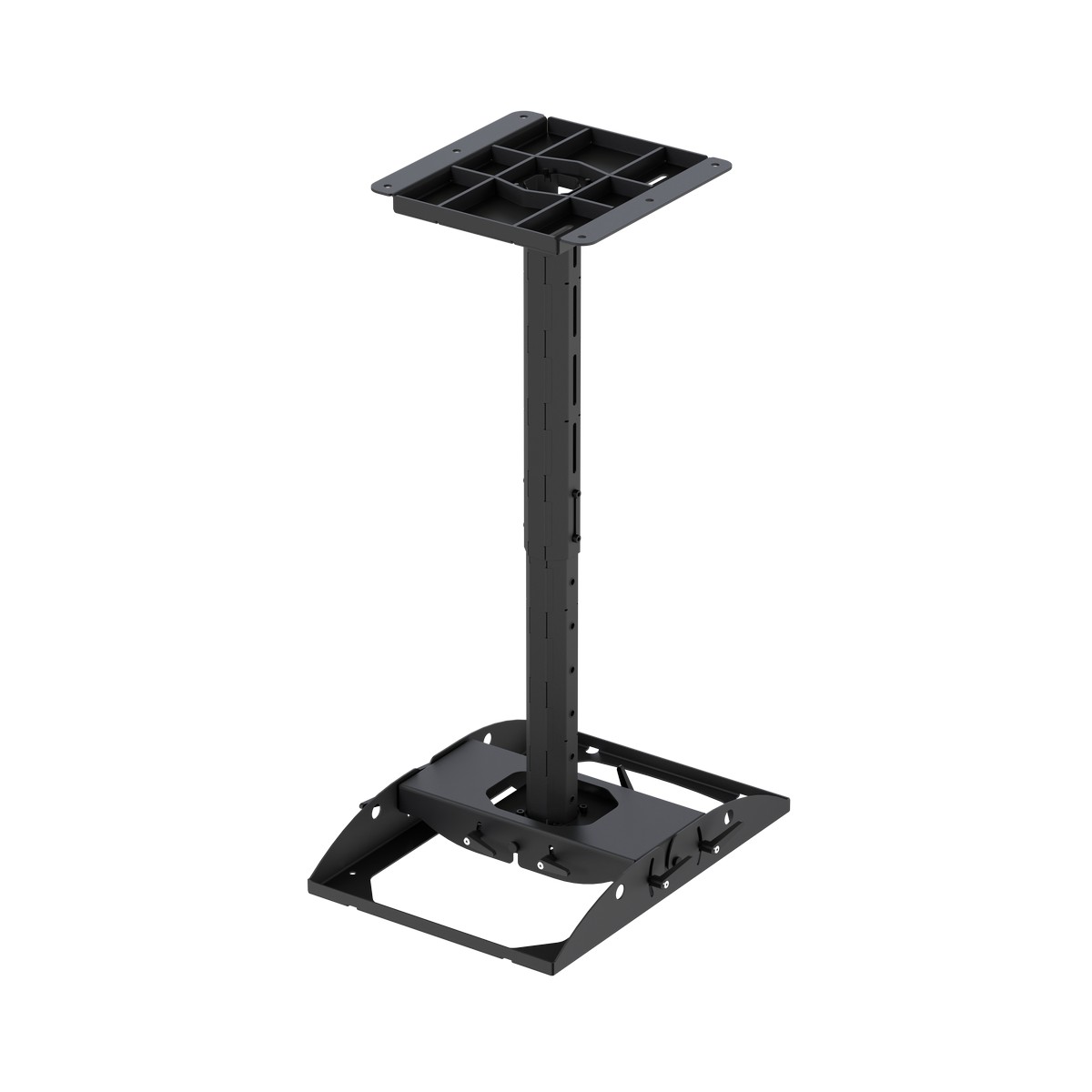

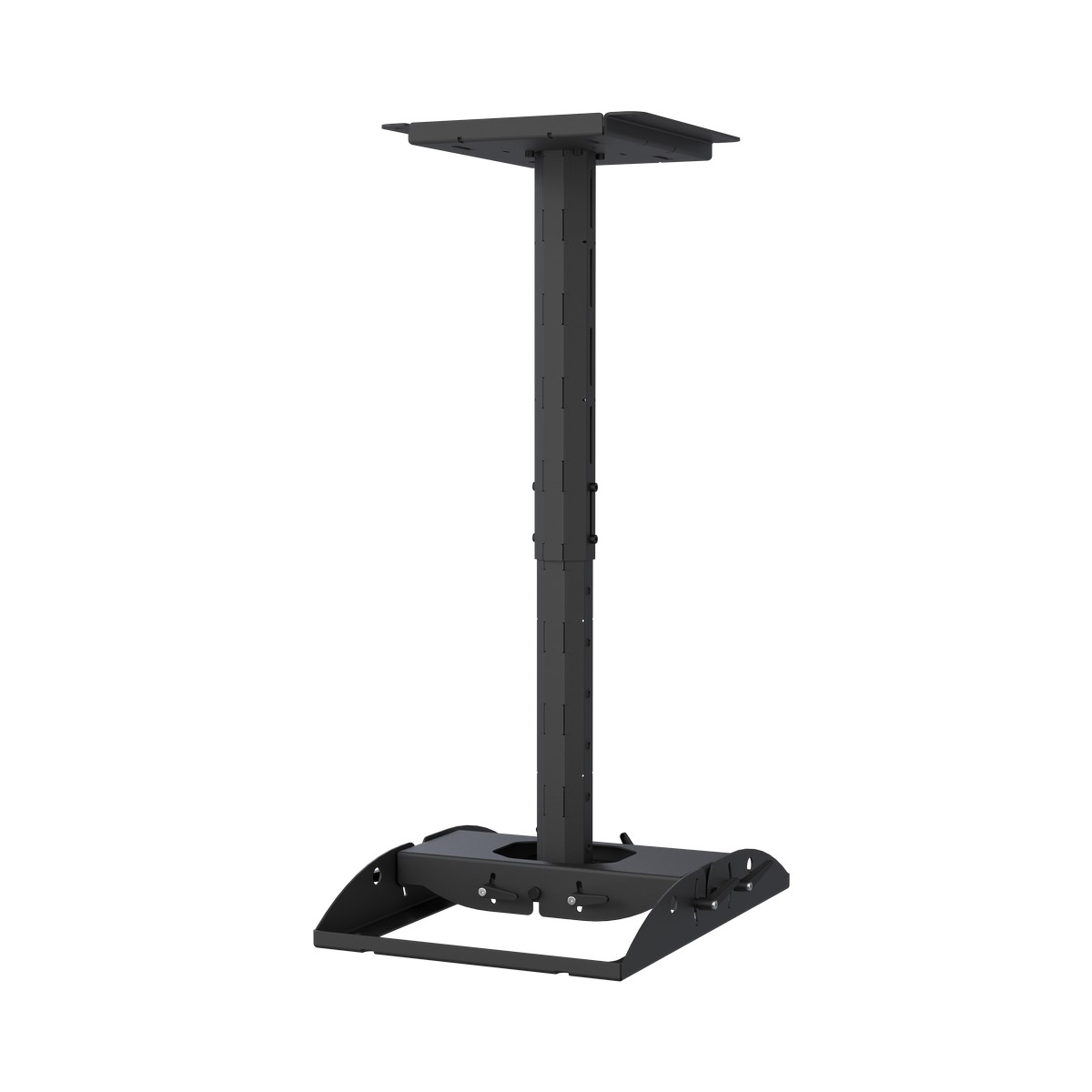

The adjustable extension arm can be installed from 690 to 1140 mm, there is also the possibility of a CUT-version of 240 mm (see Assembly guide). Projector cables can be easily hidden inside the extension cord, just like a safety cable. Fine adjustment including tilt, angle, and pan position rotation is done directly on the projector arm. Simple and versatile assembly/installation, reliability, and a complete hardware kit.

request a price

Description CVM-46

Loading file
  • Fullscreen
  • Wireframe
  • Zoom In
  • Zoom Out
  • Rotation
  • Screenshot
  • Help

Controls

×
  • Rotate with the left mouse button.
  • Zoom with the scroll button.
  • Adjust camera position with the right mouse button.
  • Double-click to enter the fullscreen mode.
  • On mobile devices swipe to rotate.
  • On mobile devices pinch two fingers together or apart to adjust zoom.
  • On mobile devices 3 finger horizontal swipe performs panning.
  • On mobile devices 3 finger horizontal swipe performs panning.

Additional information

Functions

Сeiling VESA mount

Load limit

20 kg / 44 lbs

Length

Min – 690 mm (27,17’’)
Max – 1140 mm (44,88’’)

Length CUT A

Min – 465 mm (18,31’’)
Max – 690 mm (27,17’’)

Length CUT B

240 mm (9,43’’)

Tiltle

-25° … +25°

Angle

-15° … +15°

Panoram

-20° … +20°

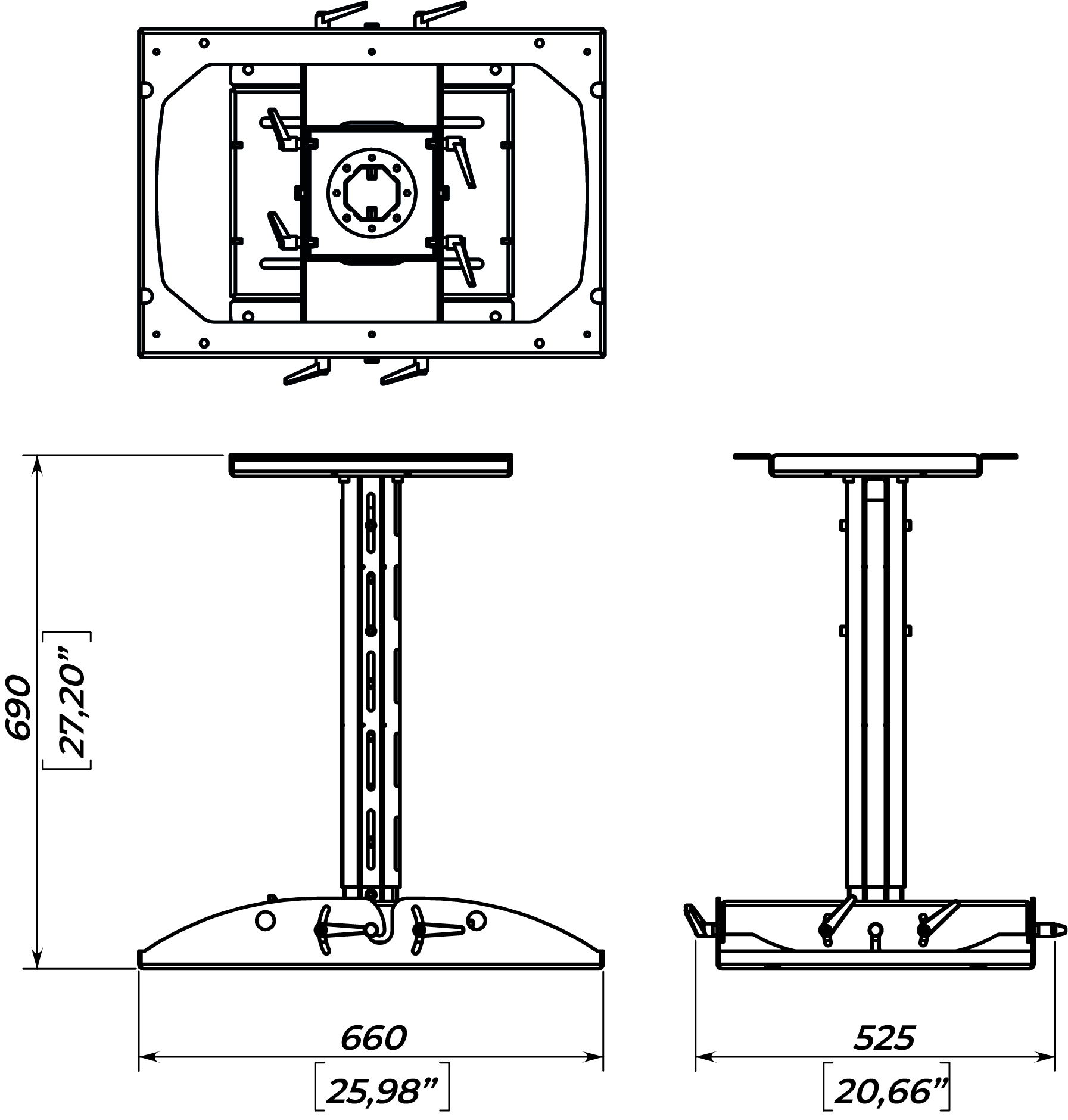

Dimensions (W x D x H)

660 x 447 x 690 mm / 25,98” x 17,60” x 27,17”

Net weight

25 kg / 55,12 lbs

PACKAGE CONTENTS

1. Bolt M8x50 DIN912 – 6 pcs
2. Nut M8 – 6 pcs
3. Washer – 6 pcs
4. Split Lock – 6 pcs
5. Anchor Bolt 10×60/M8 – 10 pcs
6. Hex key 6 – 1 pcs

Compatible with

NEC NC603L projector
