PAP-3DH

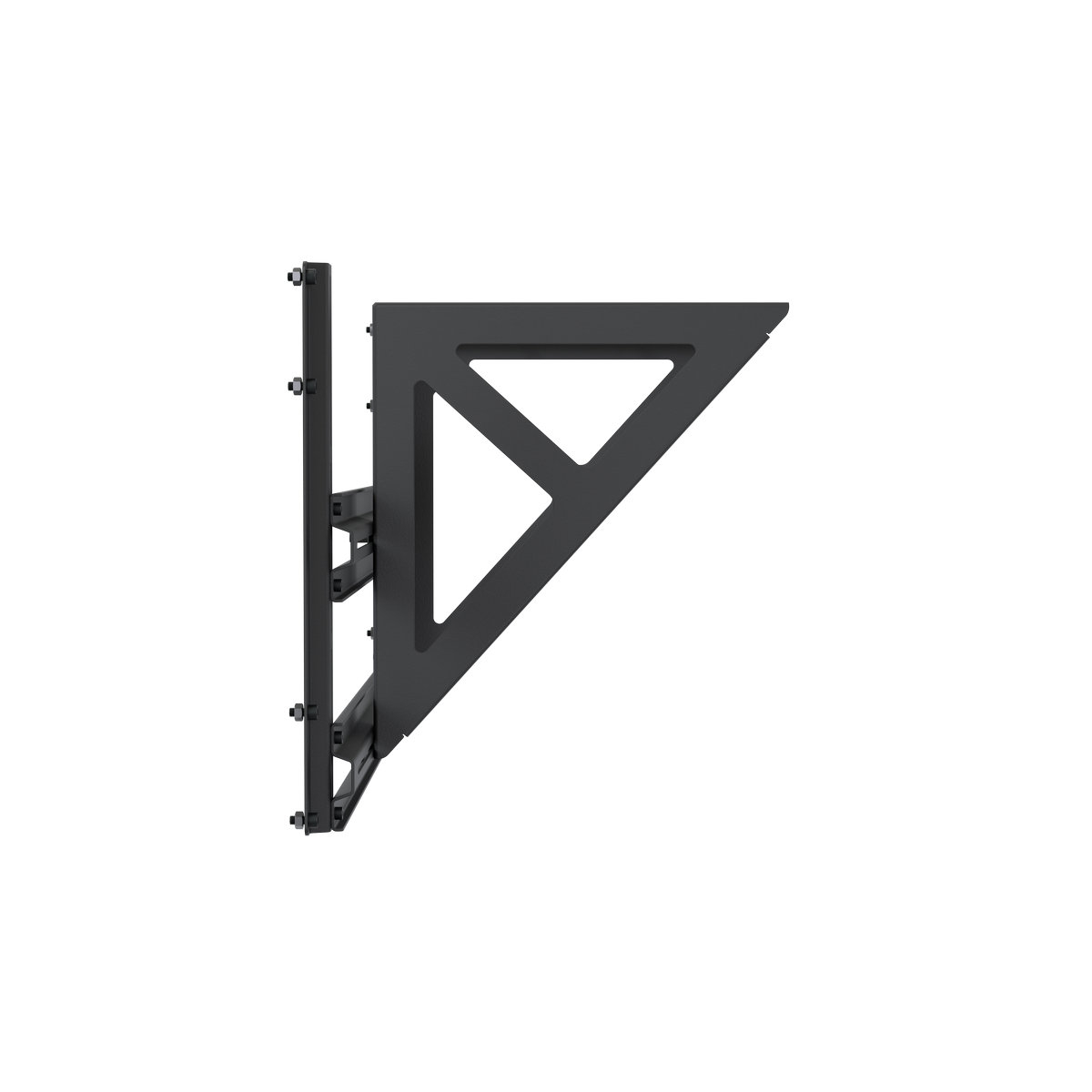

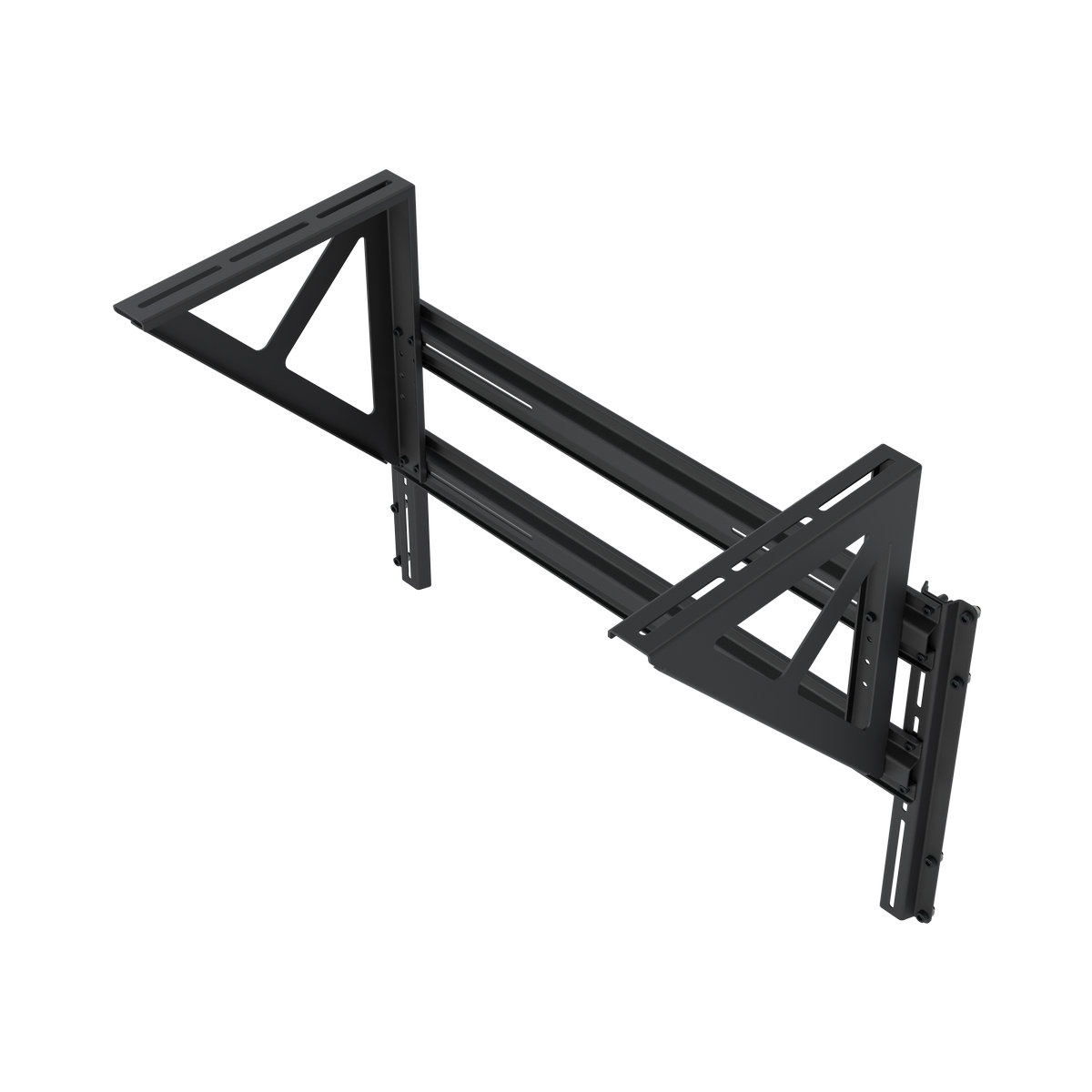

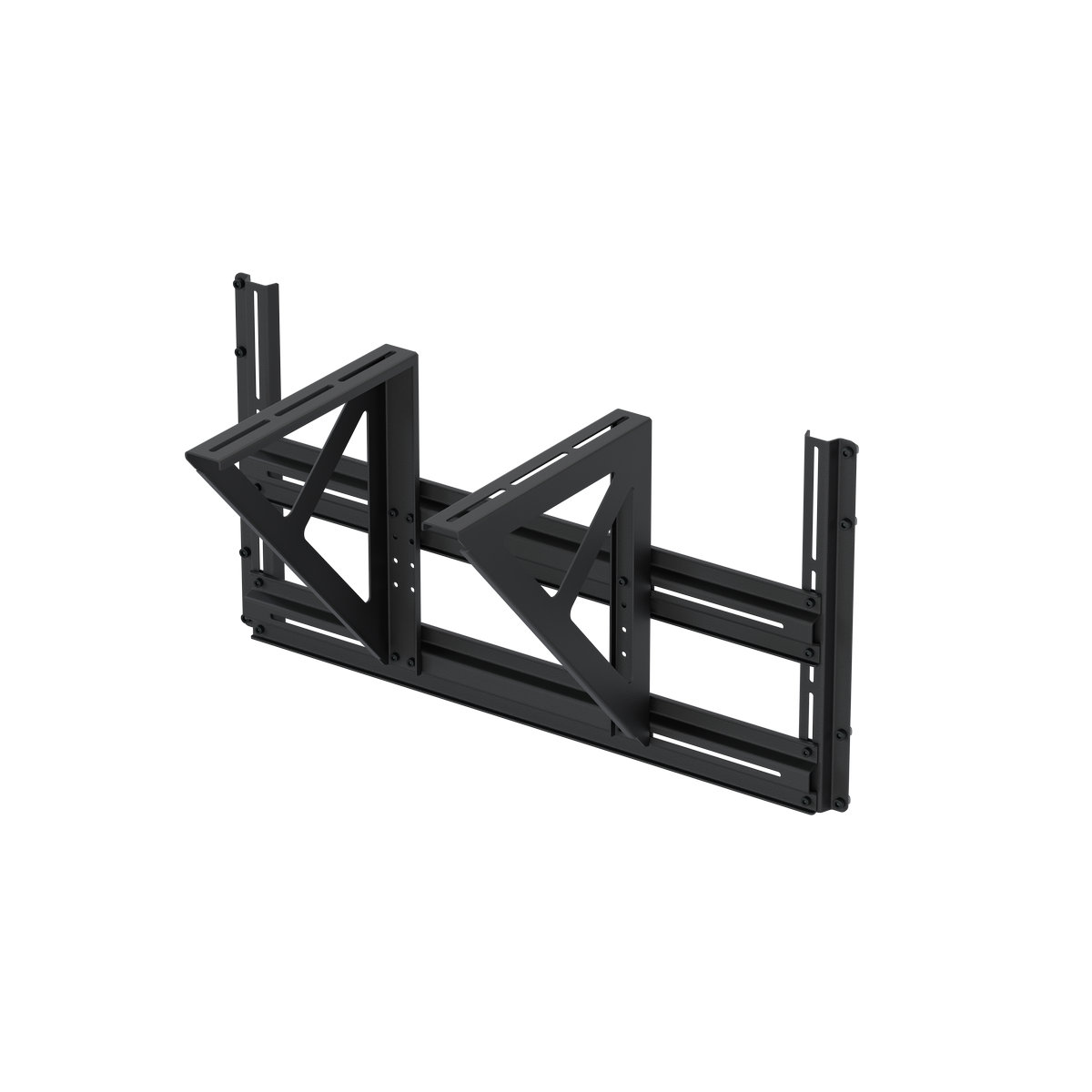

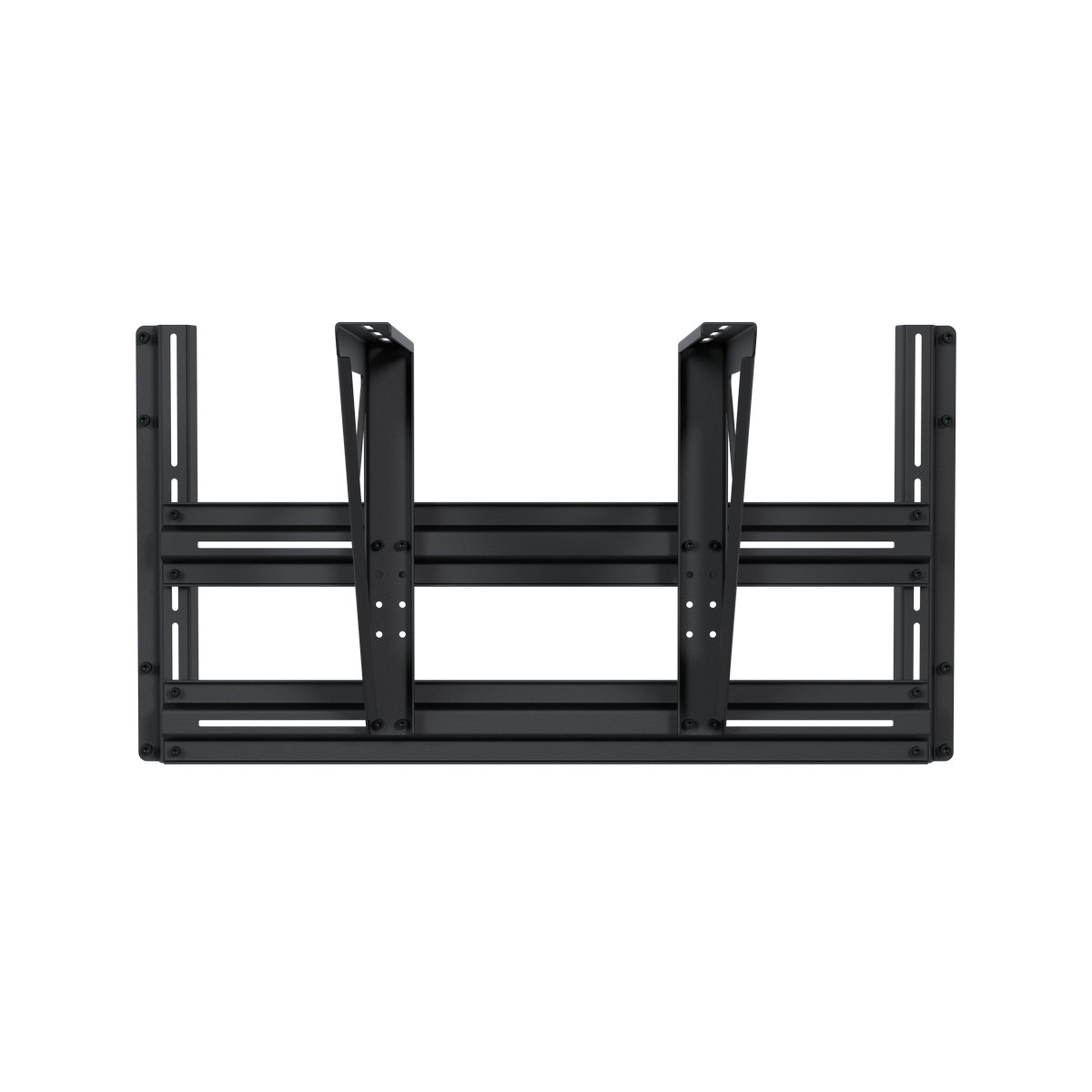

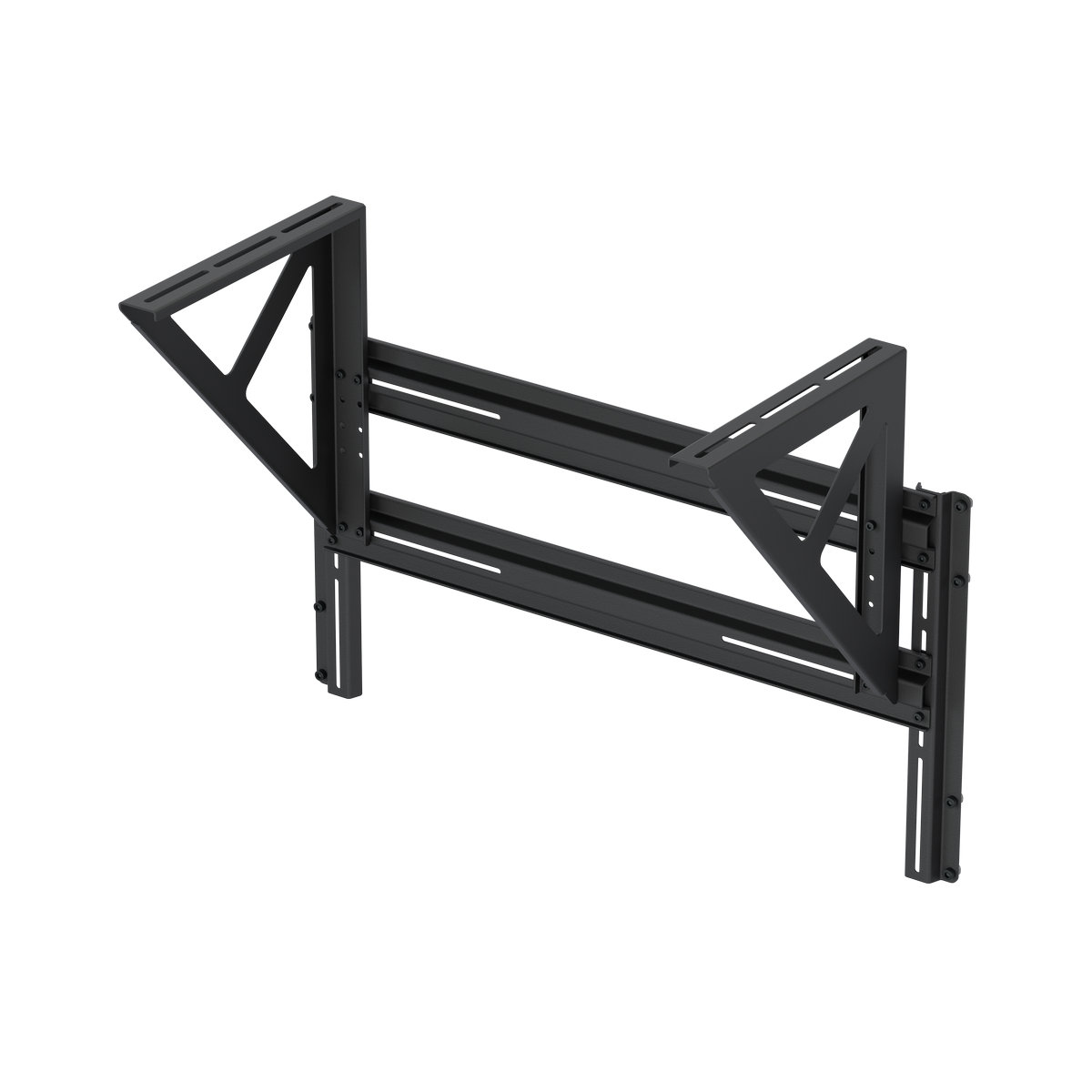

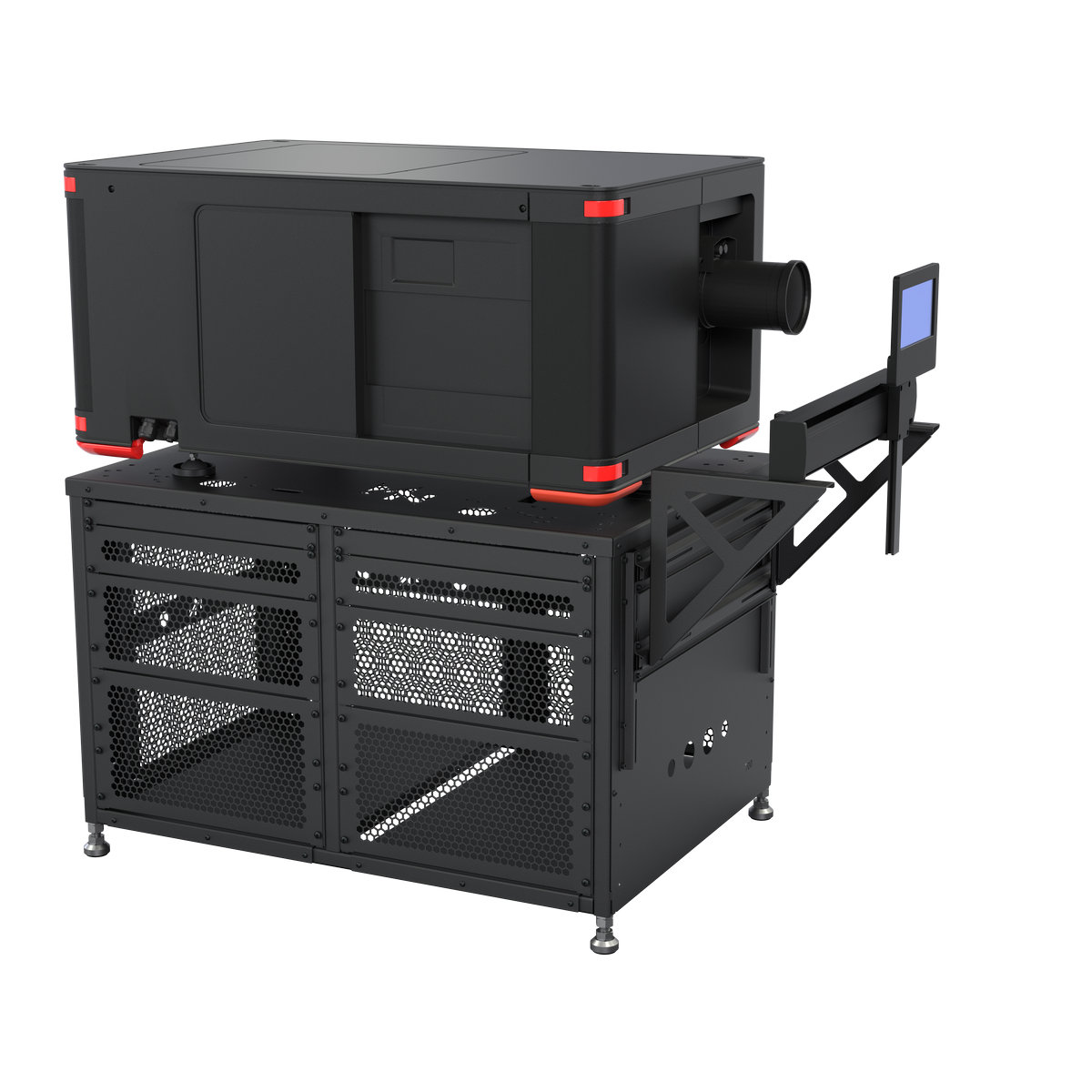

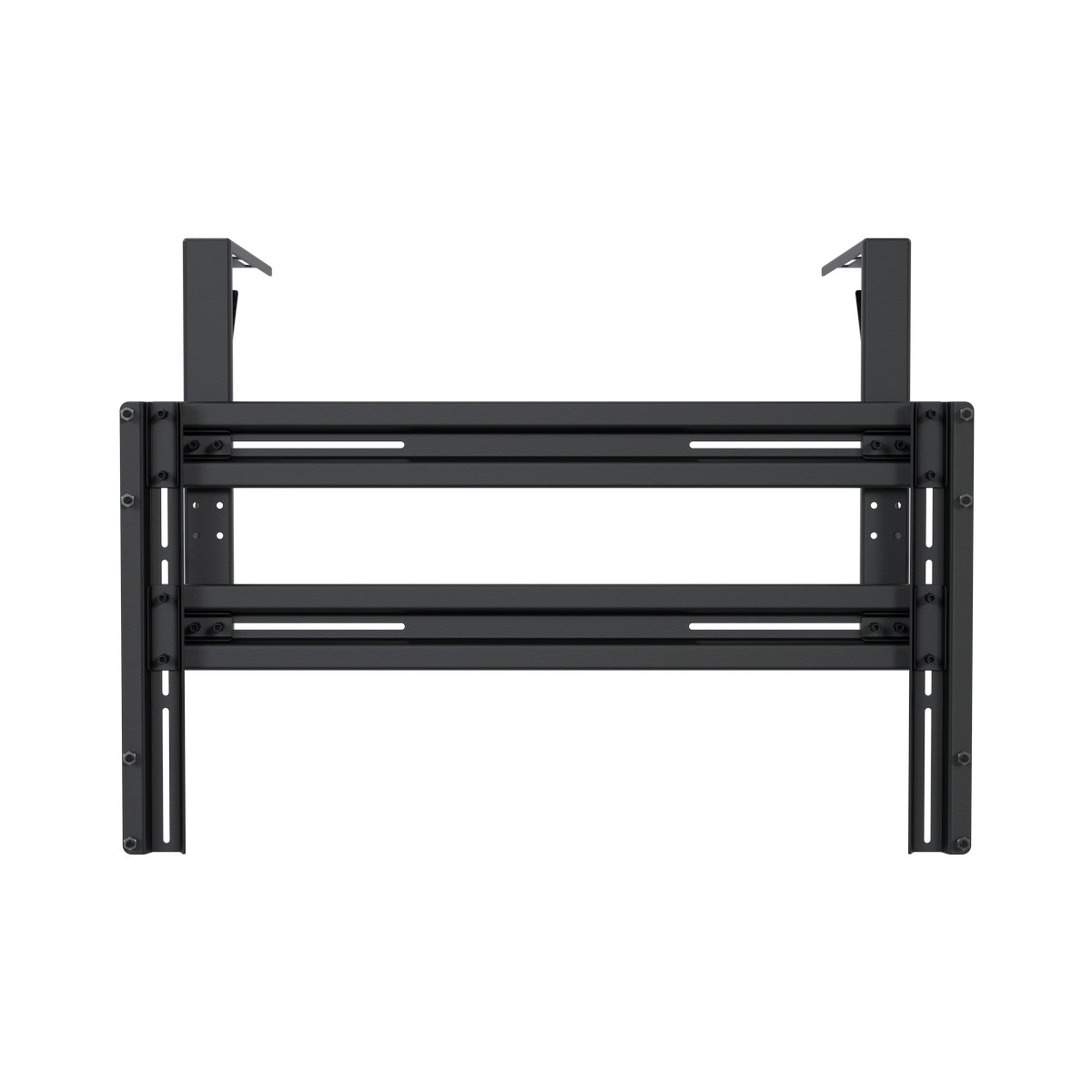

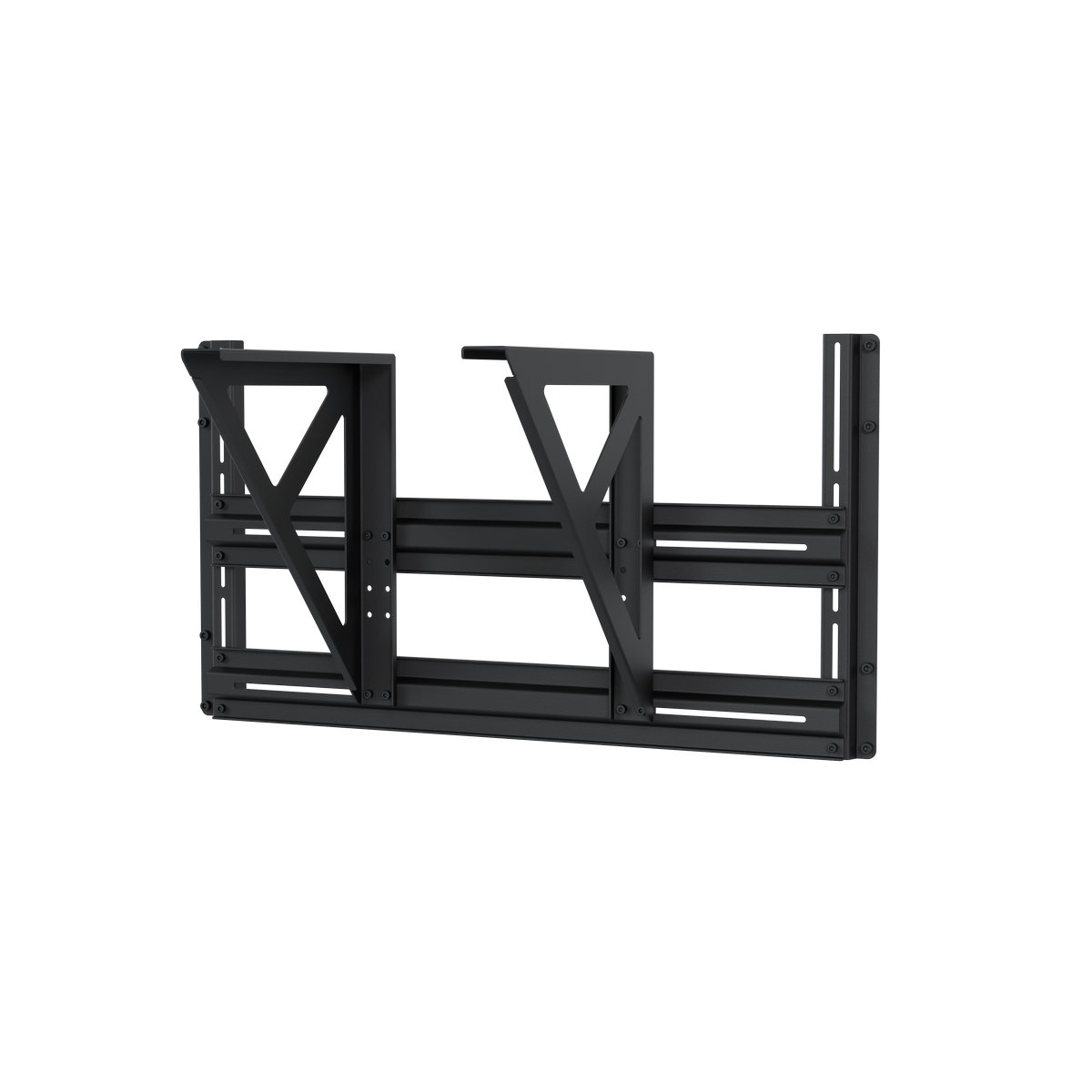

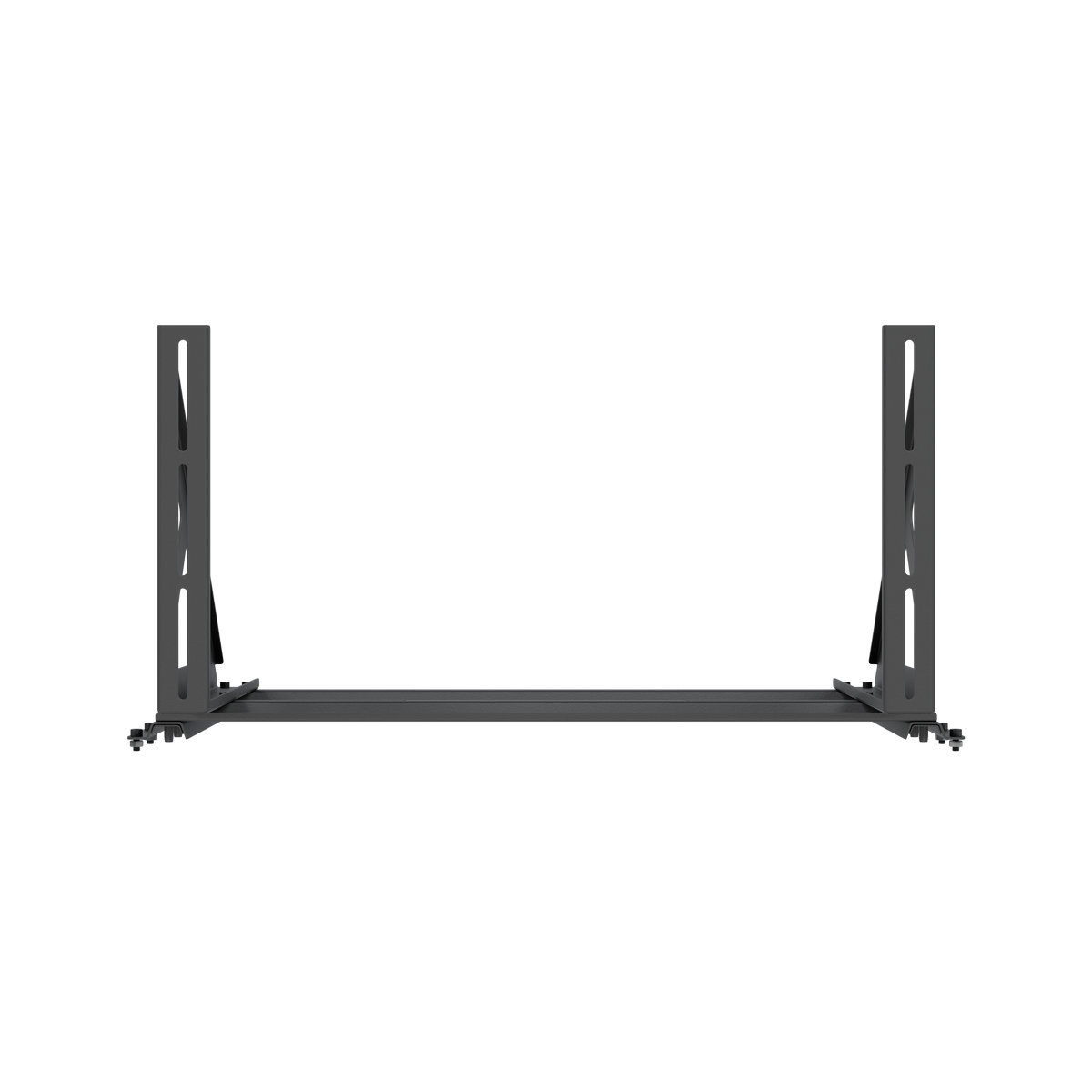

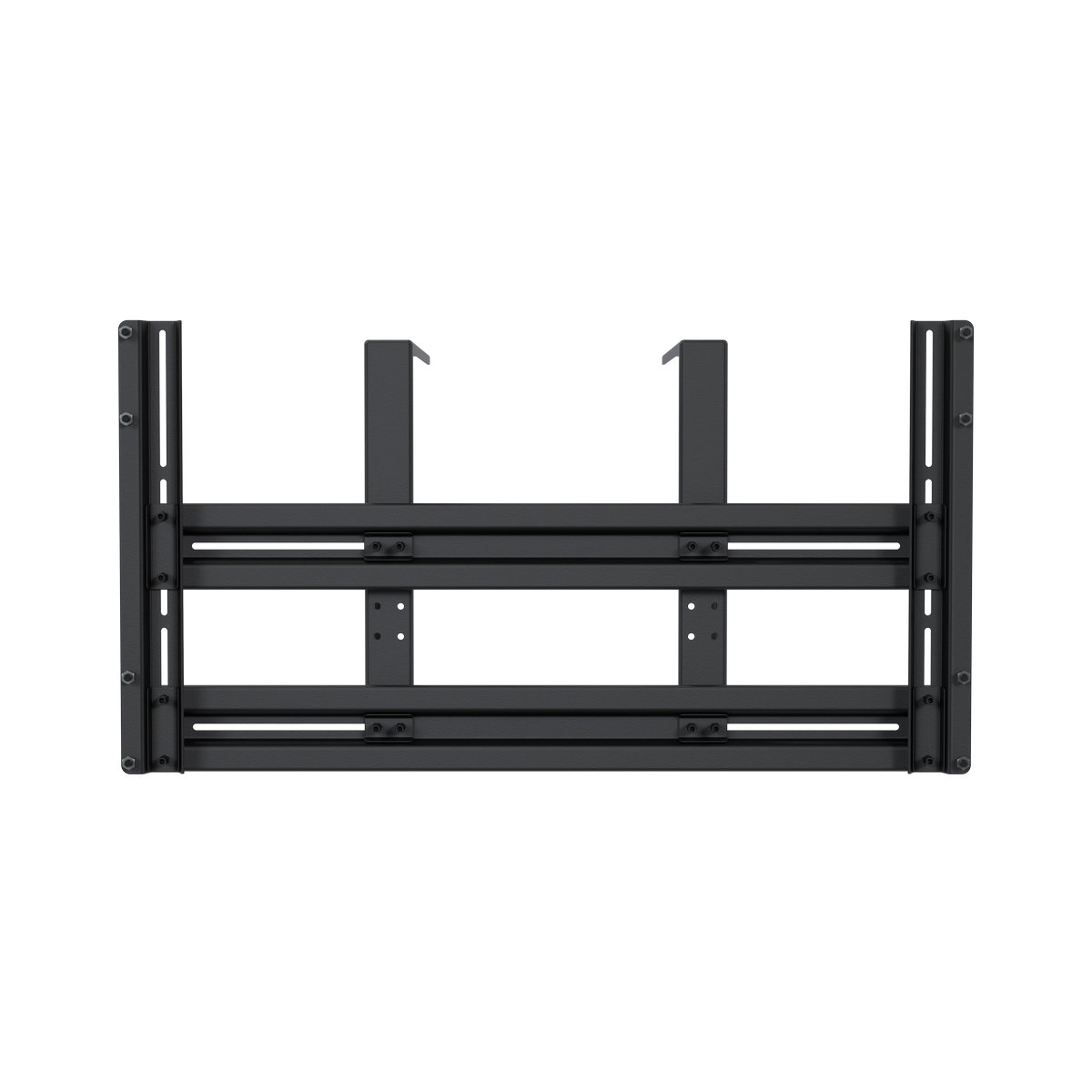

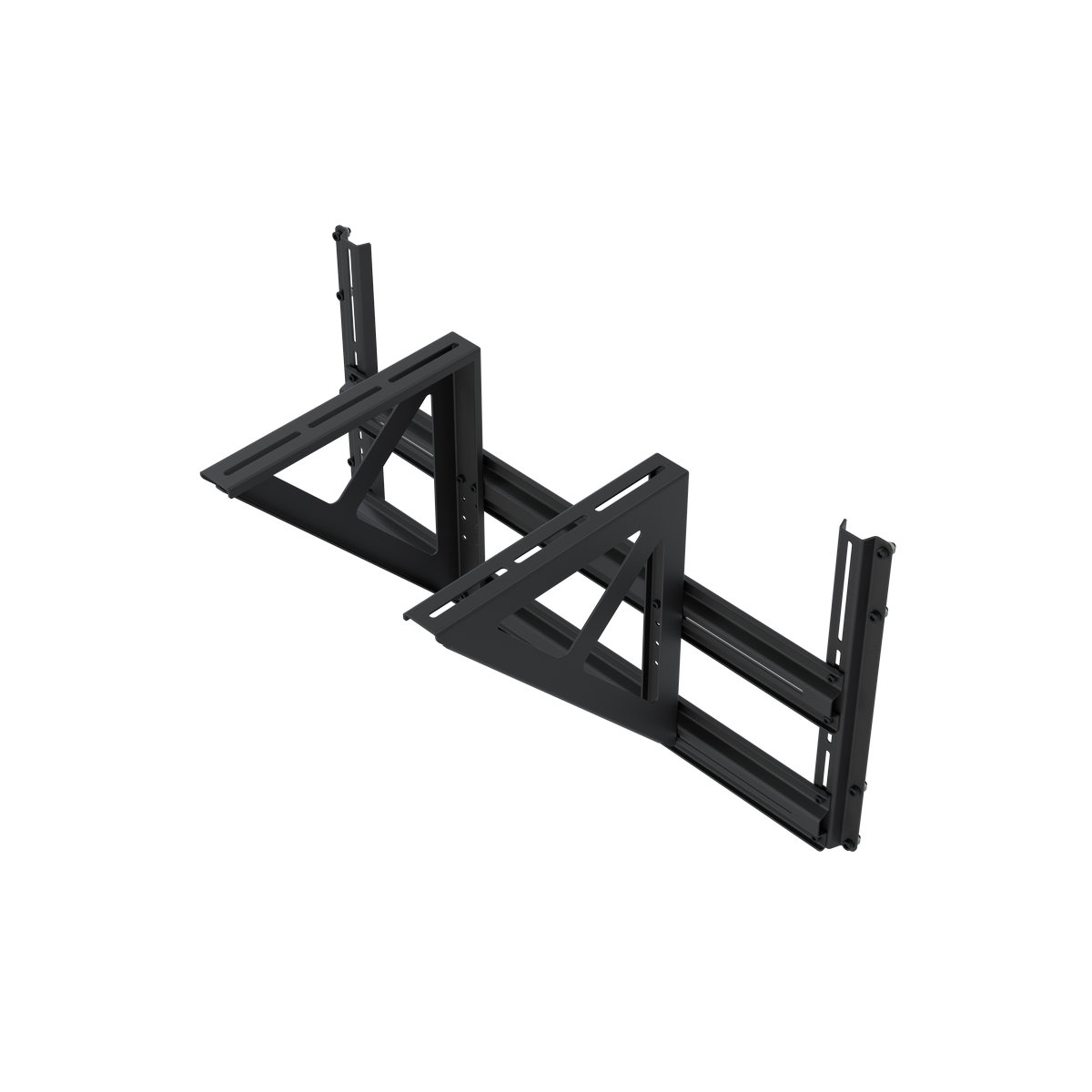

PAP-3DH – Bracket for projectors installed on pedestals. A universal bracket that can
be mounted on any type of pedestal, in order to then install a 3D system for your movie
projector on it. Easy to use, durable, reliable, covered with anti-corrosion powder paint.

request a price

Description PAP-3DH

Loading file
  • Fullscreen
  • Wireframe
  • Zoom In
  • Zoom Out
  • Rotation
  • Screenshot
  • Help

Controls

×
  • Rotate with the left mouse button.
  • Zoom with the scroll button.
  • Adjust camera position with the right mouse button.
  • Double-click to enter the fullscreen mode.
  • On mobile devices swipe to rotate.
  • On mobile devices pinch two fingers together or apart to adjust zoom.
  • On mobile devices 3 finger horizontal swipe performs panning.
  • On mobile devices 3 finger horizontal swipe performs panning.

Additional information

Functions

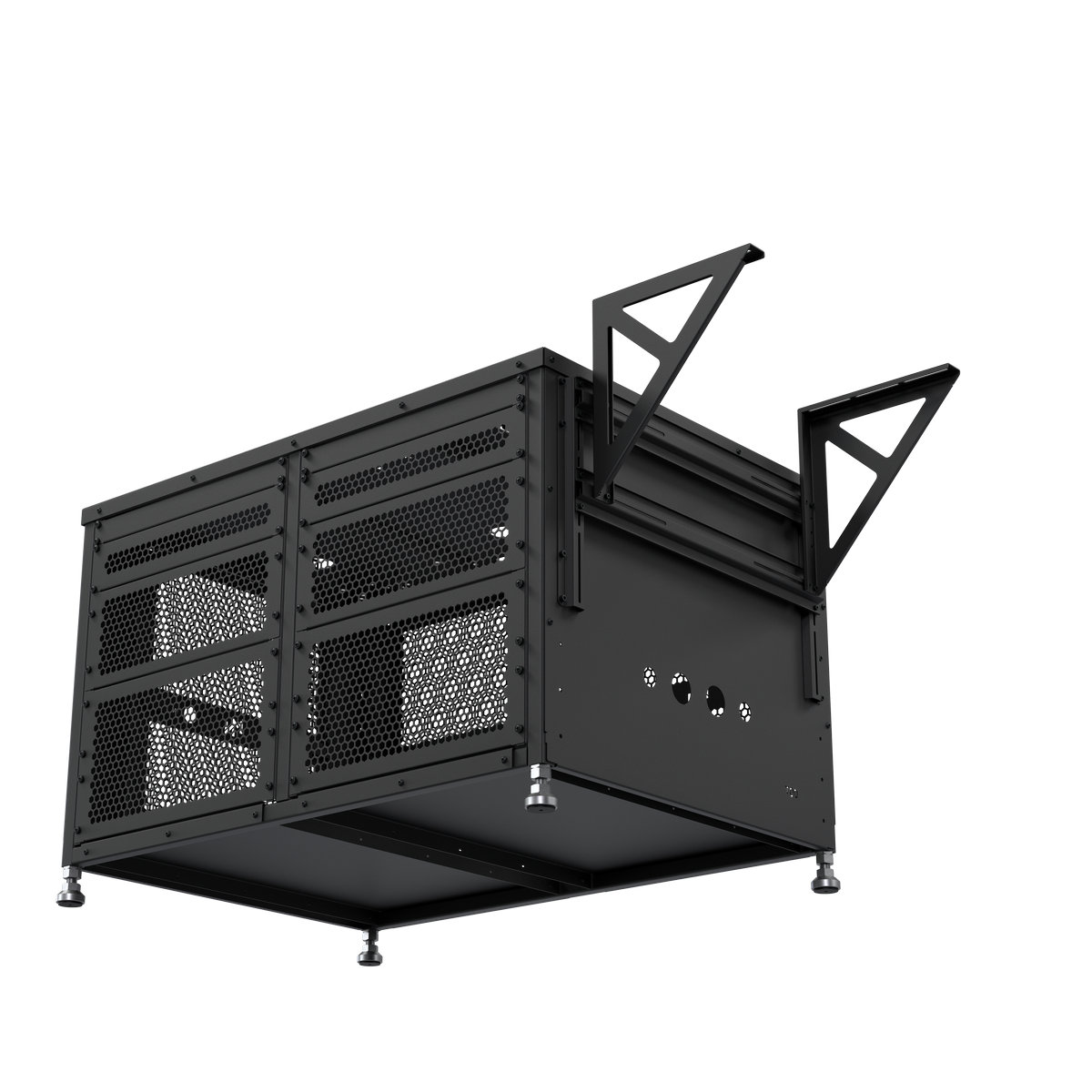

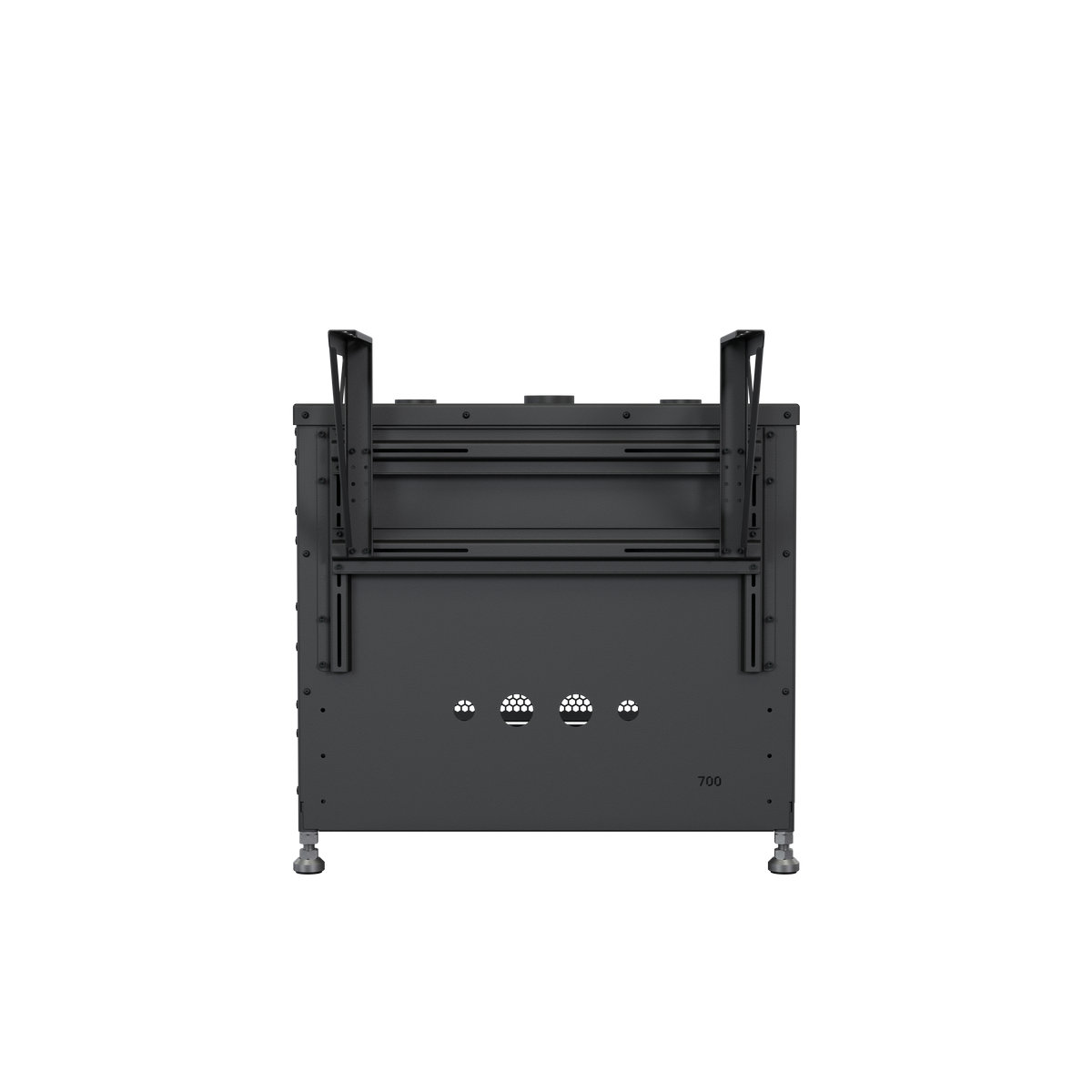

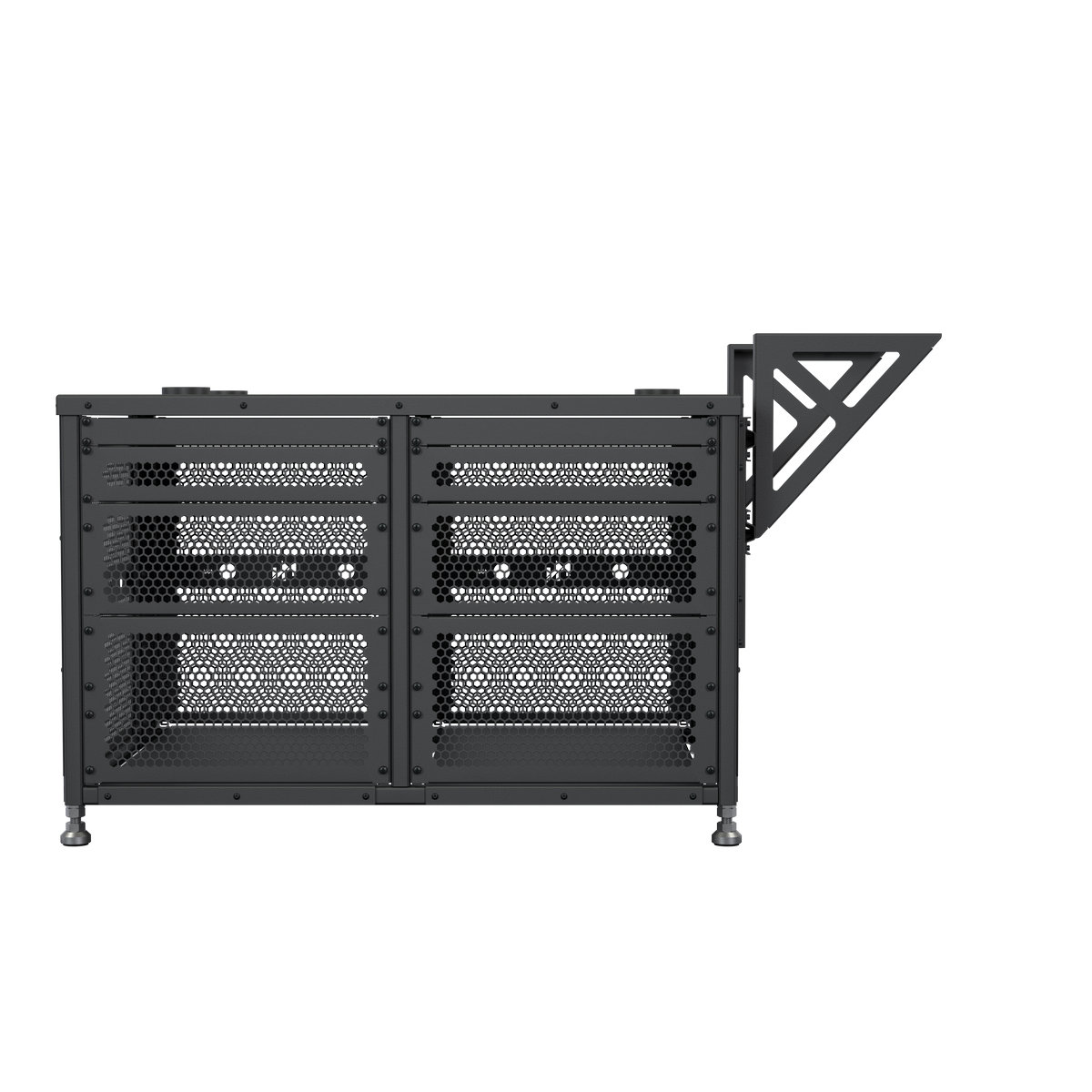

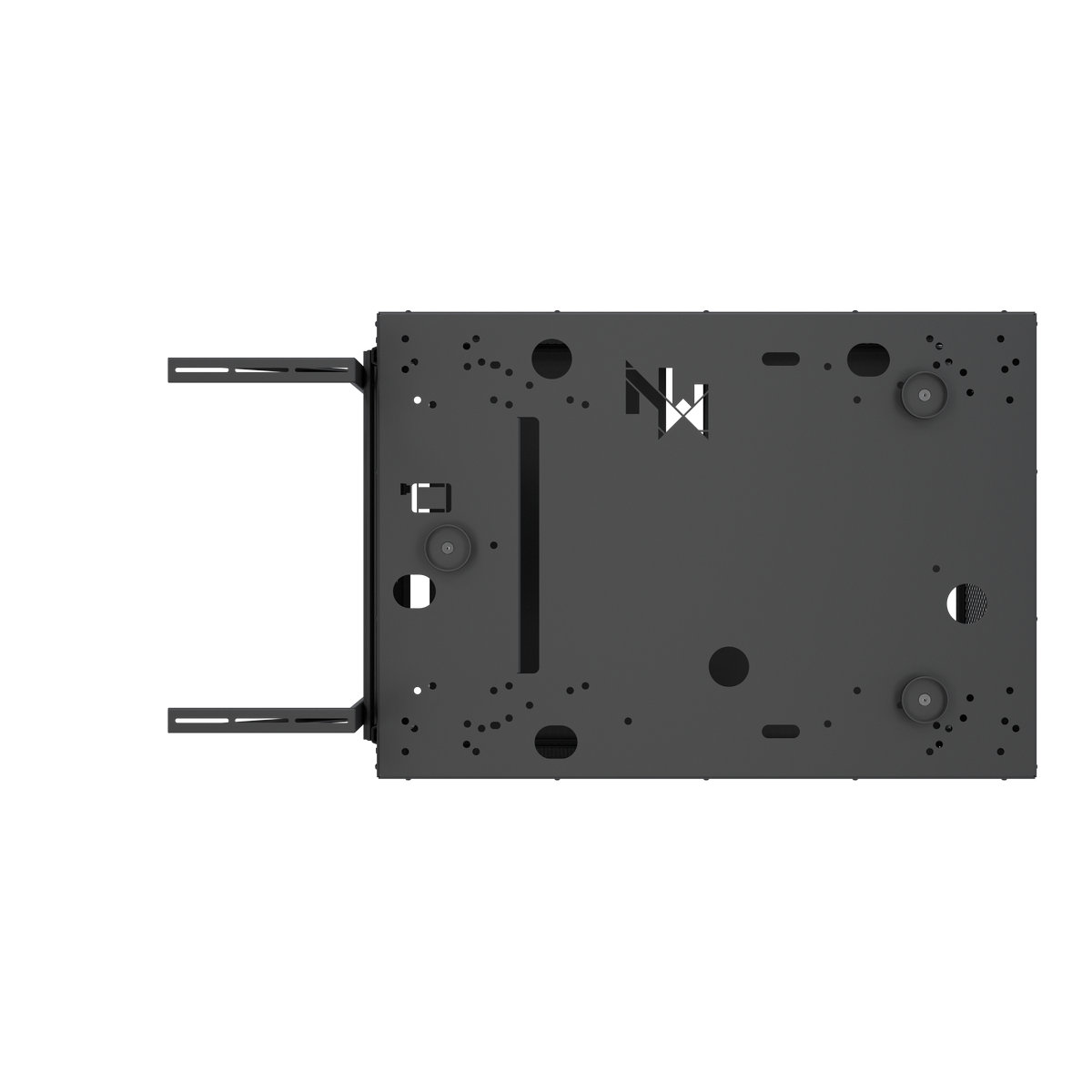

The bracket for the 3D system on different Projector Pedestals

Weight capacity

20 kg / 44 lbs

Width adjustment

260 – 560 mm / 10,24” – 22,05”

Height adjustment

150 mm / 5,91”

Depth adjustment

285 mm / 11,22”

Dimensions (WxDxH)

694 x 333 x 505 mm / 27,32” x 13,10” x 19,88”

Net weight

4,68 kg / 10,32 lbs

PACKAGE CONTENTS

1. Vertical bracket 2 pcs
2. Horizontal bracket 2 pcs
3. Left triangular bracket 1 pcs
4. Right triangular bracket 1 pcs
5. Vertical plate with nuts 4 pcs
6. Horizontal plate with nuts 4 pcs
7. Nut M6 DIN 934 8 pcs
8. Screw M5x16 DIN 912 16 pcs
9. Screw M6x12 DIN 912 8 pcs

Compatible with

Projector Pedestals PAP-Series
