LA-705

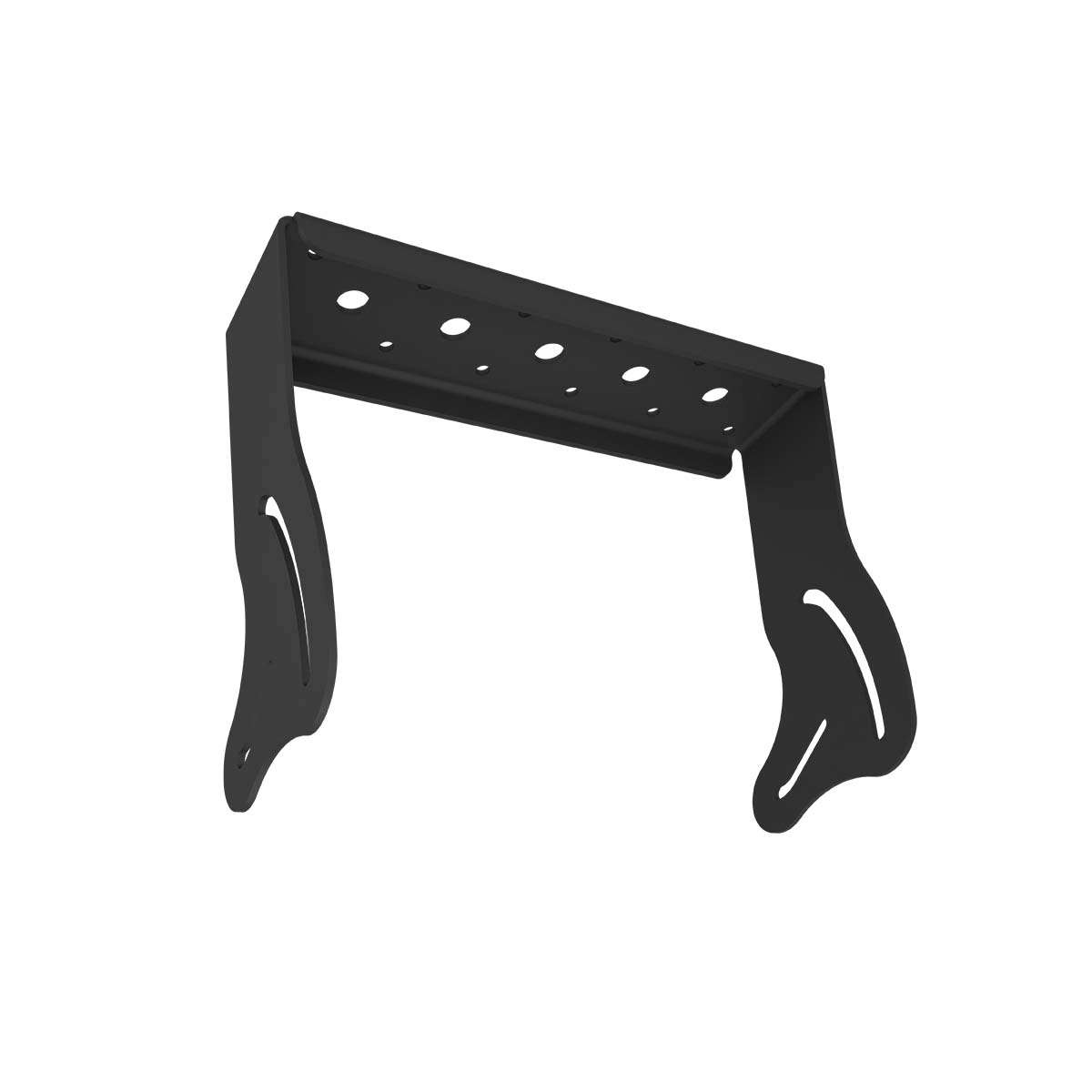

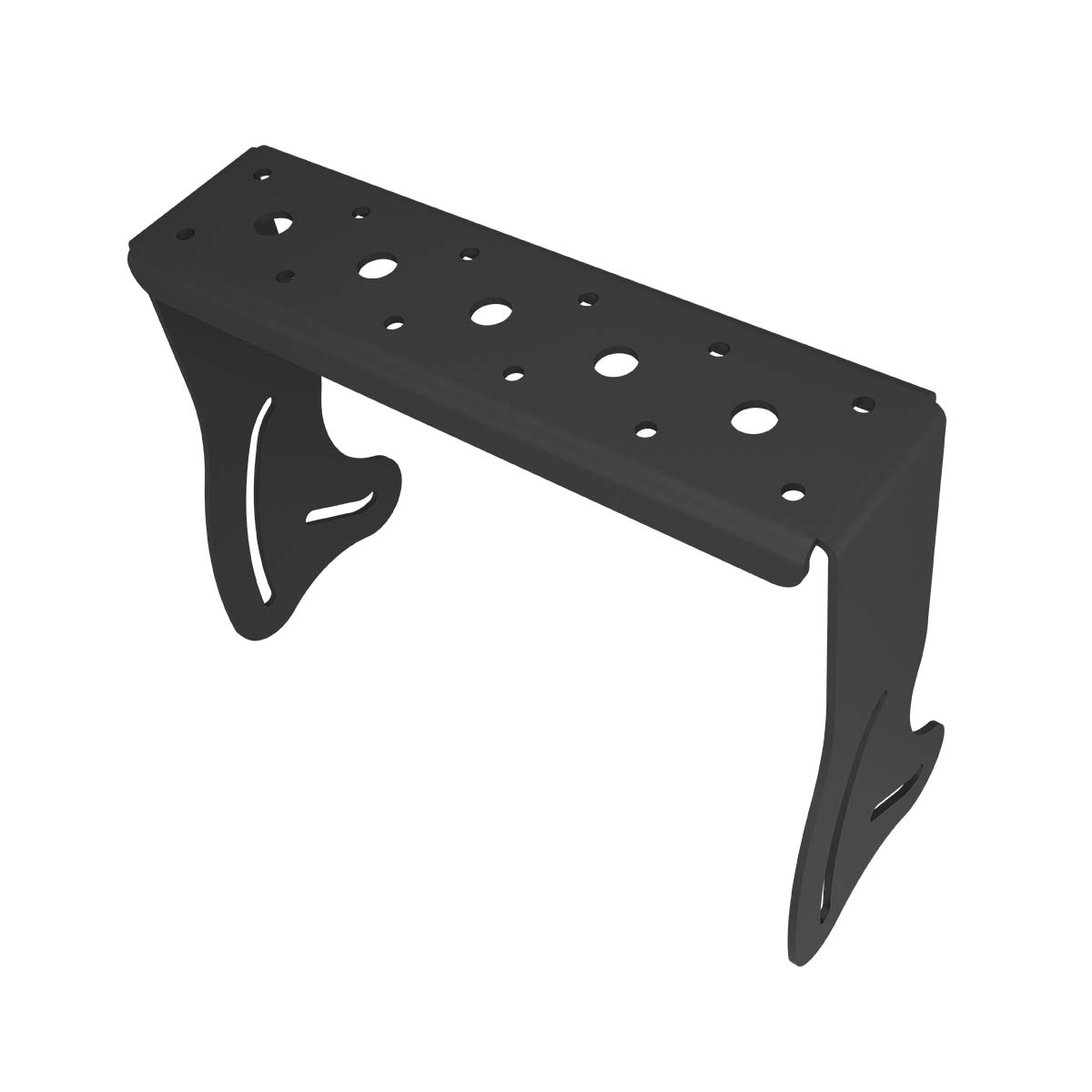

The LA-705 is a U-Bracket, compatible with JBL speakers LSR 705p and LSR 705i.

This U-bracket supports loudspeakers weighing up to 45 kg (100 lbs.) and comes with a design factor of 7:1.

request a price

Description LA-705

Loading file
  • Fullscreen
  • Wireframe
  • Zoom In
  • Zoom Out
  • Rotation
  • Screenshot
  • Help

Controls

×
  • Rotate with the left mouse button.
  • Zoom with the scroll button.
  • Adjust camera position with the right mouse button.
  • Double-click to enter the fullscreen mode.
  • On mobile devices swipe to rotate.
  • On mobile devices pinch two fingers together or apart to adjust zoom.
  • On mobile devices 3 finger horizontal swipe performs panning.
  • On mobile devices 3 finger horizontal swipe performs panning.

Additional information

Functions

U-bracket

Mounting holes

5 x dia 14 mm (0,53”); 12 x dia 7 mm (0,26”)

Pan angle

0° … 90°

Load limit

45 kg – 100 lbs

Design factor

7:1 ratio

Dimensions

278 x 214 x 109 mm – 10,94” x 8,43” x 4,29”

Net weight

1,25 kg – 2,76 lbs

Compatible JBL speakers

LSR 705P; LSR 705i

OPTIONAL ACCESSORIES

WBM-1
CMT-HS
