UBR-300

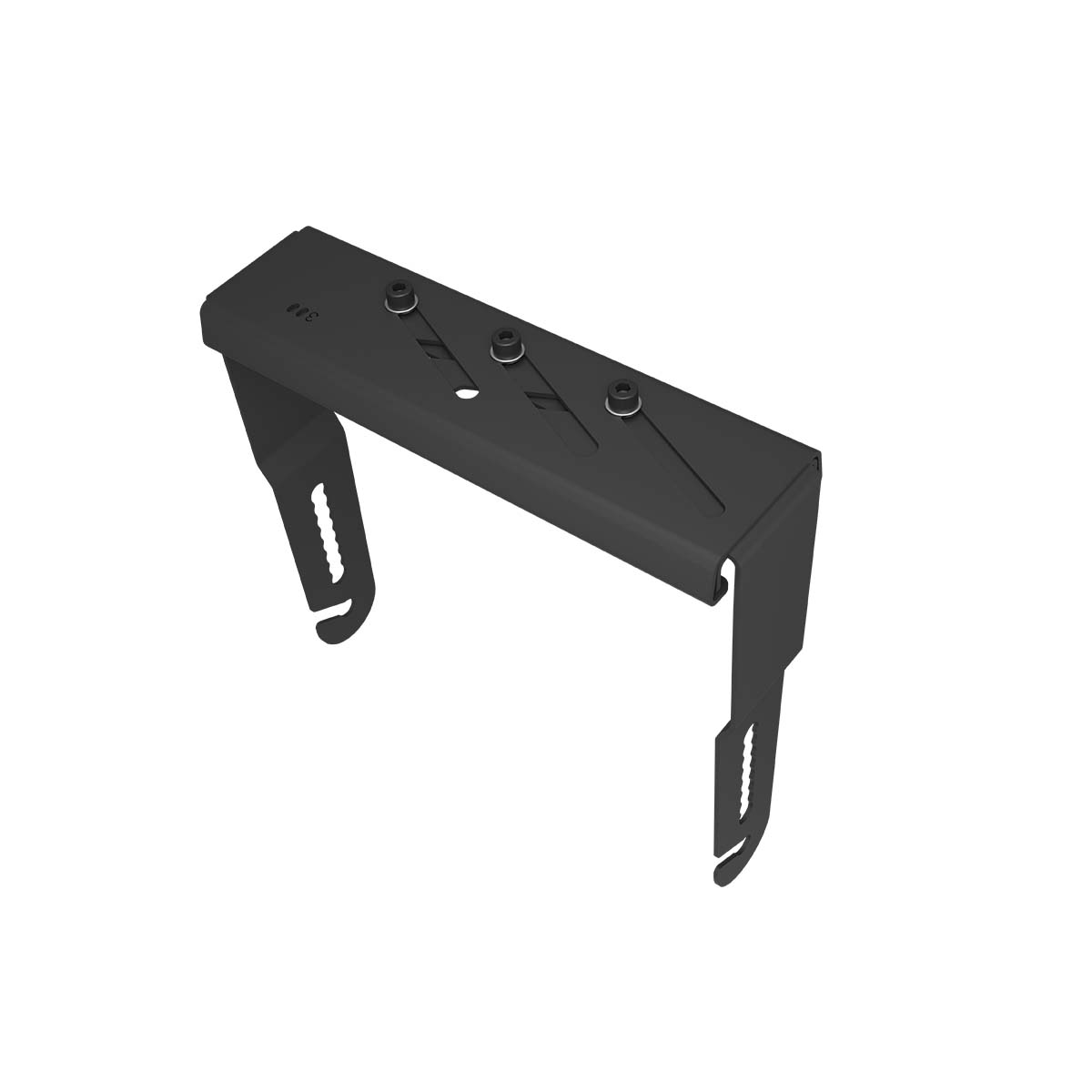

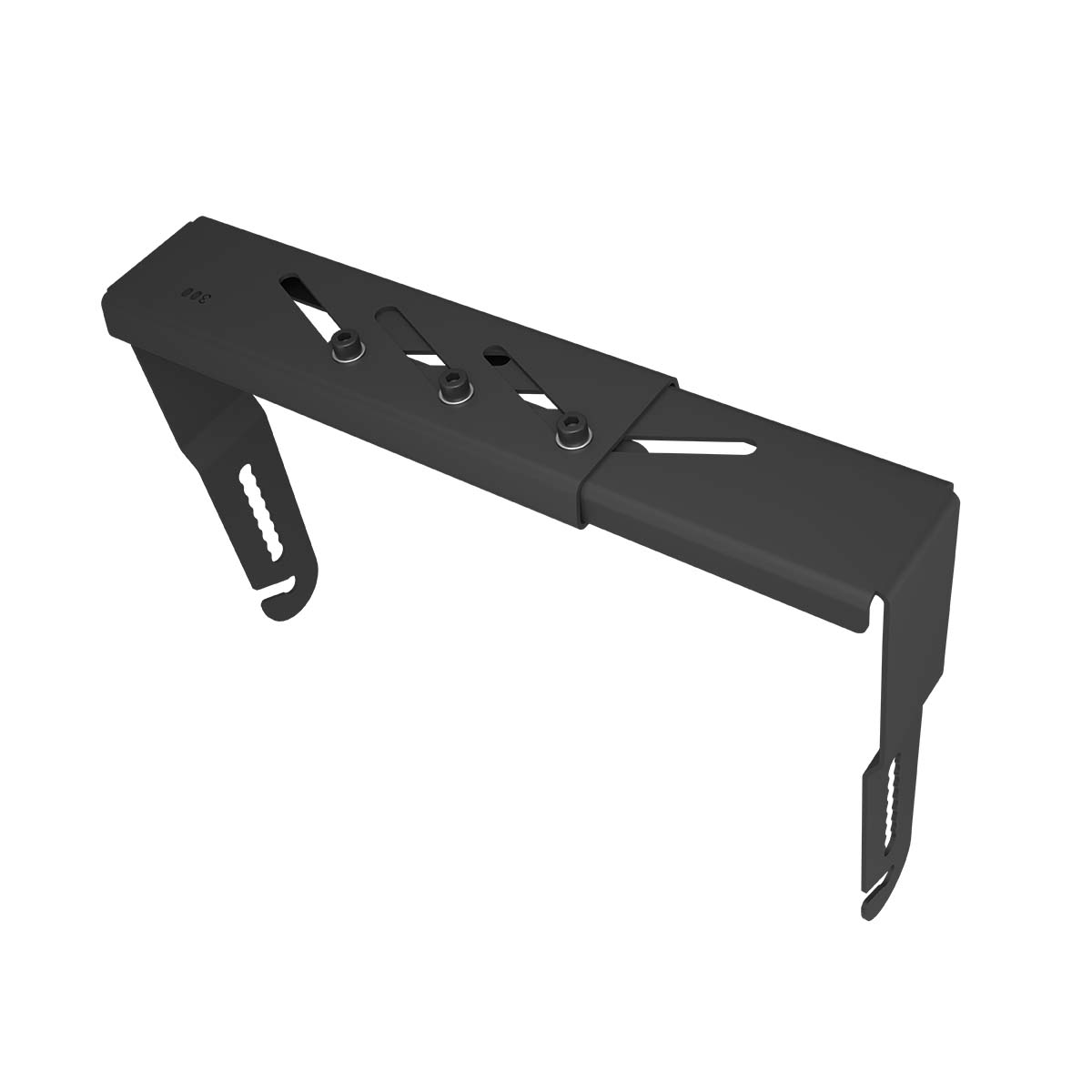

The UBR-300 is a universal U-Brackets, with adjustible width and depth. Accepts two M10 mounting bolts from the speaker.

This U-bracket supports loudspeakers weighing up to 45 kg (100 lbs.) and comes with a design factor of 7:1.

The UBR-300 has speaker width range 282 mm (11,10”) – 412 mm (16,22”), and mouting depth 158 mm (6,20”) – 258 mm (10,14”).

request a price

Description UBR-300

Loading file
  • Fullscreen
  • Wireframe
  • Zoom In
  • Zoom Out
  • Rotation
  • Screenshot
  • Help

Controls

×
  • Rotate with the left mouse button.
  • Zoom with the scroll button.
  • Adjust camera position with the right mouse button.
  • Double-click to enter the fullscreen mode.
  • On mobile devices swipe to rotate.
  • On mobile devices pinch two fingers together or apart to adjust zoom.
  • On mobile devices 3 finger horizontal swipe performs panning.
  • On mobile devices 3 finger horizontal swipe performs panning.

Additional information

Functions

U-bracket

Speaker mounting holes

2 x M10

Mounting holes

M10

Speaker width range

282 – 412 mm – 11,10” – 16,22”

Mouting depth

158 – 258 mm – 6,20” – 10,14”

Pan angle

Depends on speaker geometry

Load limit

45 kg – 100 lbs

Design factor

7:1 ratio

Dimensions

303 x 283 x 84 mm – 11,93” x 11,12” x 3,33”

Net weight

2,05 kg – 4,52 lbs
