UBR-500

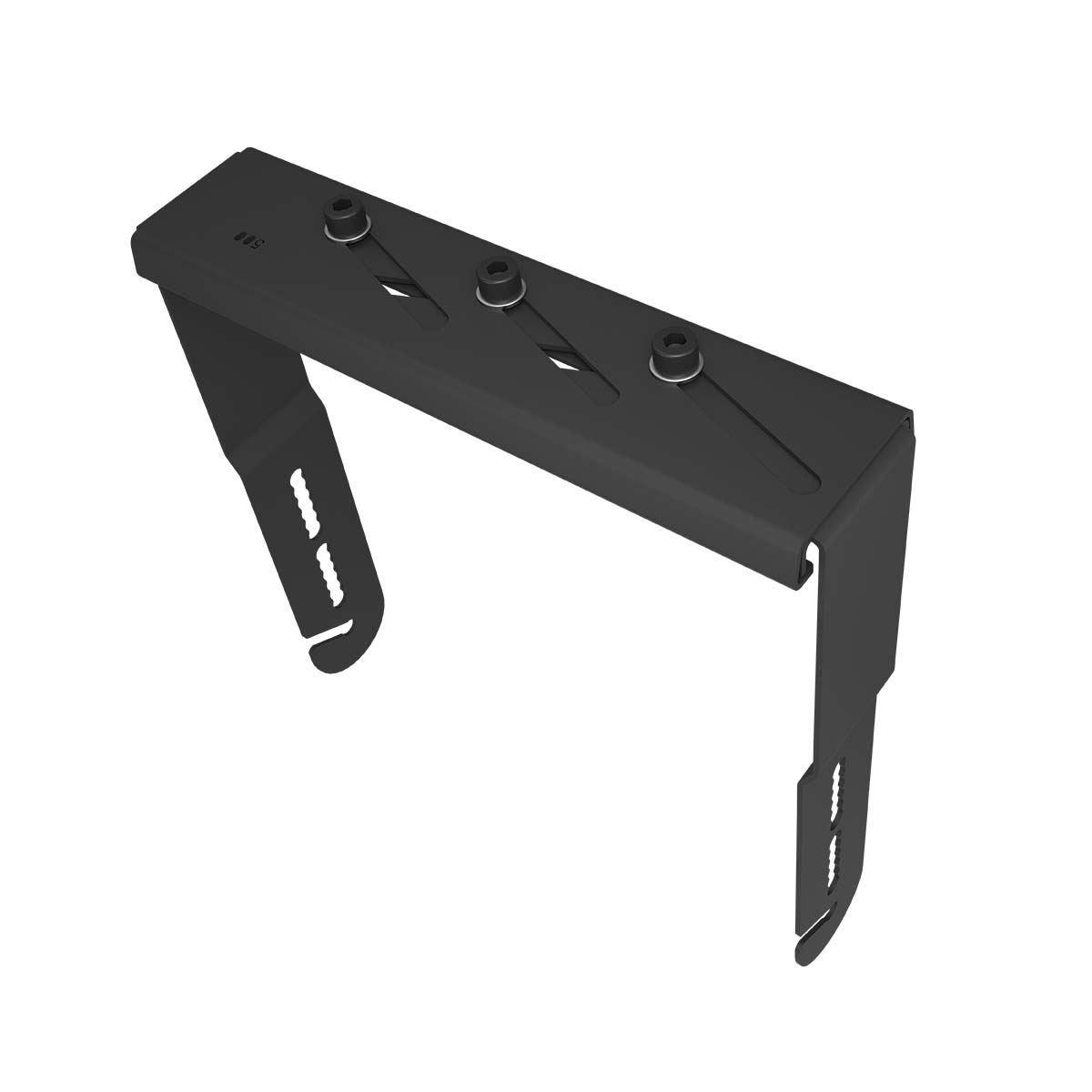

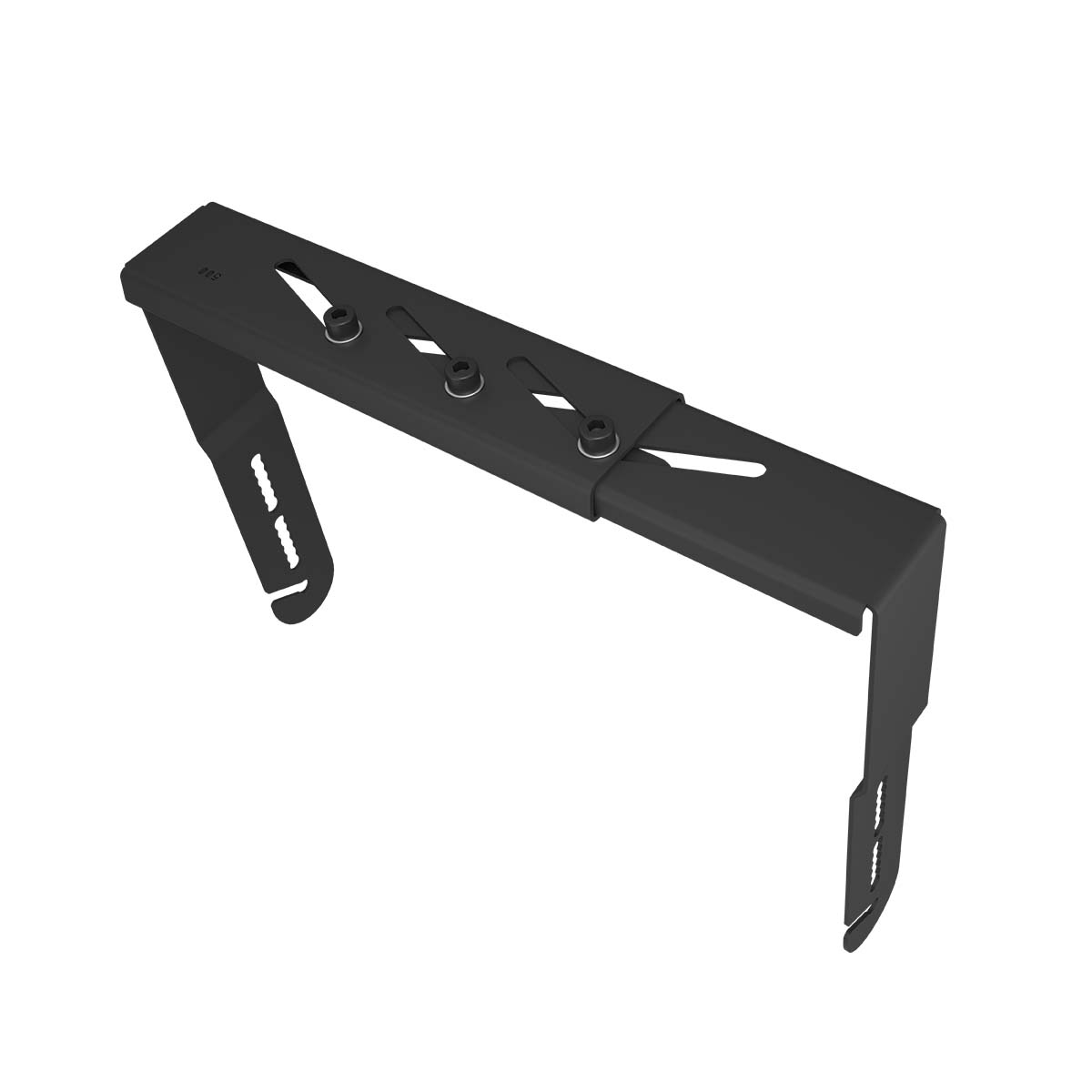

The UBR-500 is a universal U-Brackets, with adjustible width and depth. Accepts two M10 mounting bolts from the speaker.

This U-bracket supports loudspeakers weighing up to 45 kg (100 lbs.) and comes with a design factor of 7:1.

The UBR-500 has speaker width range 372 mm (14,65”) – 532 mm (20,94”), and mouting depth 213 mm (8,39”) – 363 mm (14,29”).

request a price

Description UBR-500

Loading file
  • Fullscreen
  • Wireframe
  • Zoom In
  • Zoom Out
  • Rotation
  • Screenshot
  • Help

Controls

×
  • Rotate with the left mouse button.
  • Zoom with the scroll button.
  • Adjust camera position with the right mouse button.
  • Double-click to enter the fullscreen mode.
  • On mobile devices swipe to rotate.
  • On mobile devices pinch two fingers together or apart to adjust zoom.
  • On mobile devices 3 finger horizontal swipe performs panning.
  • On mobile devices 3 finger horizontal swipe performs panning.

Additional information

Functions

U-bracket

Speaker mounting holes

2 x M10

Mounting holes

M10

Speaker width range

372 – 532 mm – 14,65” – 20,94”

Mouting depth

213 – 363 mm – 8,39” – 14,29”

Pan angle

Depends on speaker geometry

Load limit

45 kg – 100 lbs

Design factor

7:1 ratio

Dimensions

394 x 398 x 95 mm – 15,51” x 15,67” x 3,72”

Net weight

3,55 kg – 7,83 lbs

OPTIONAL ACCESSORIES

WBM-1
CMT-HS
