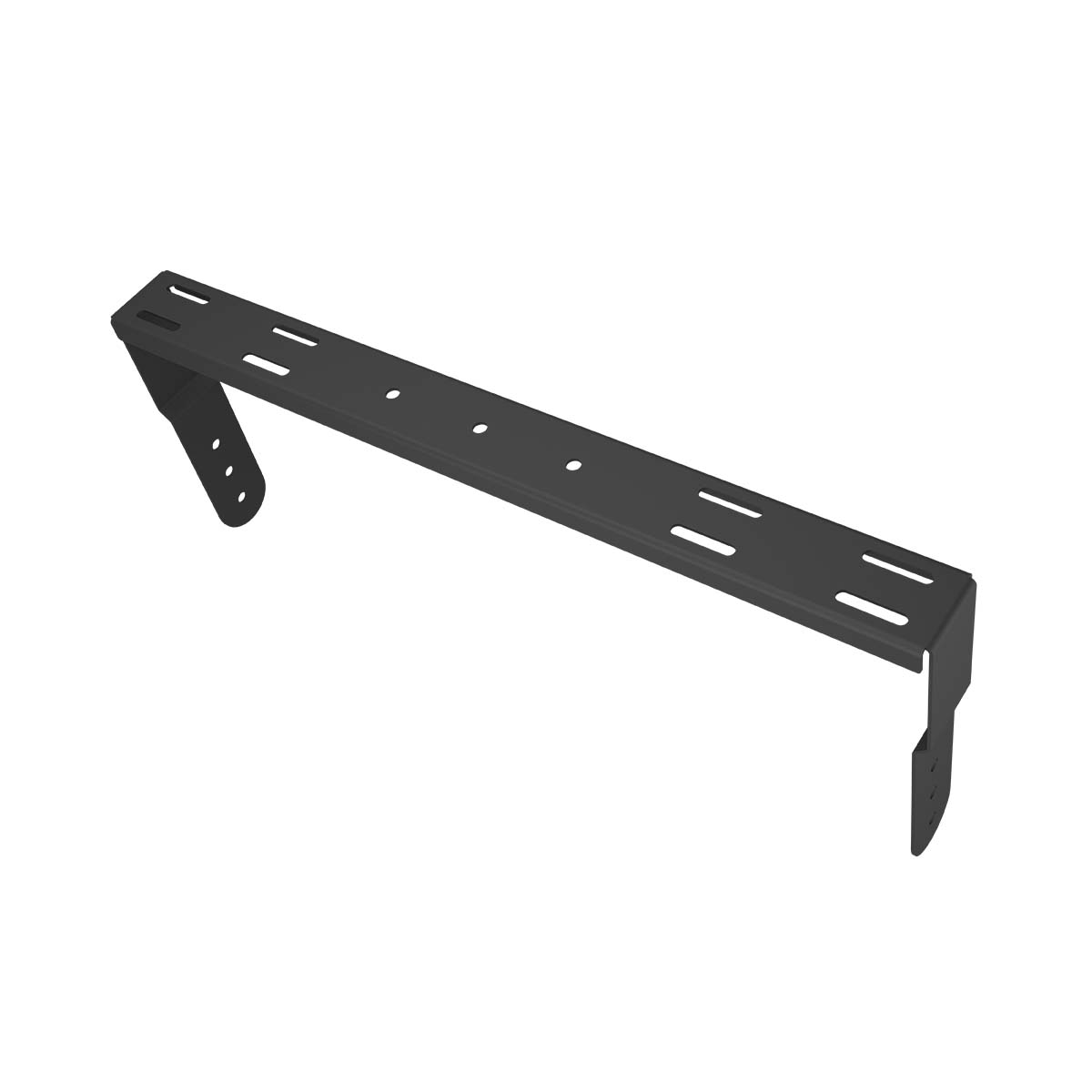

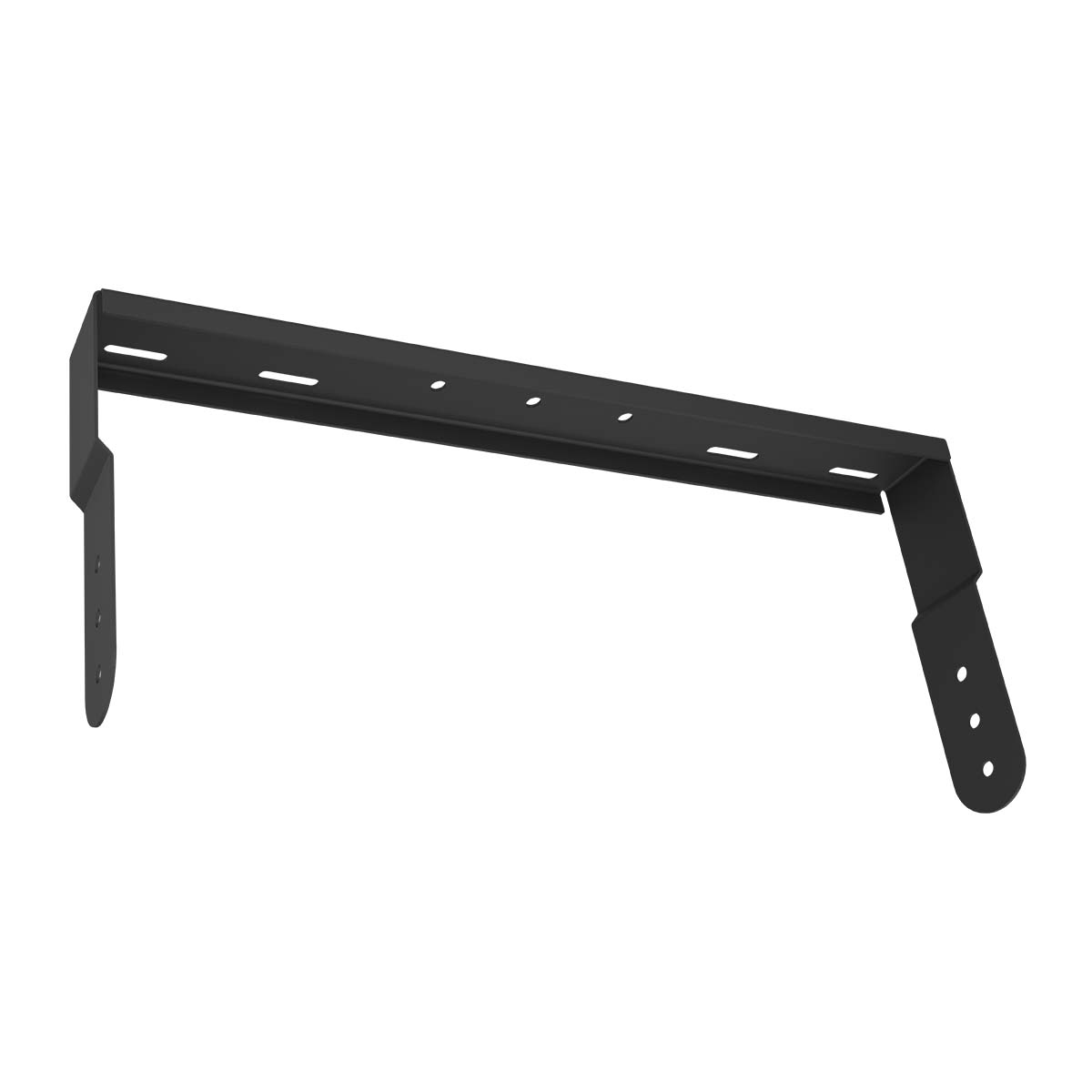

UBR-816

The UBR-816 is a U-Bracket, compatible with QSC speakers SR-5152.
This U-bracket supports loudspeakers weighing up to 45 kg (100 lbs.) and comes with a design factor of 7:1.

request a price

Description UBR-816

Loading file
  • Fullscreen
  • Wireframe
  • Zoom In
  • Zoom Out
  • Rotation
  • Screenshot
  • Help

Controls

×
  • Rotate with the left mouse button.
  • Zoom with the scroll button.
  • Adjust camera position with the right mouse button.
  • Double-click to enter the fullscreen mode.
  • On mobile devices swipe to rotate.
  • On mobile devices pinch two fingers together or apart to adjust zoom.
  • On mobile devices 3 finger horizontal swipe performs panning.
  • On mobile devices 3 finger horizontal swipe performs panning.

Additional information

Functions

U-bracket

Speaker mounting holes

6 x 13 mm / 0,49"

Mounting holes

13 mm / 0,49"

Speaker width range

816 mm – 32,13”

Mouting depth

208 – 293 mm – 8,19” – 11,54”

Pan angle

Depends on speaker geometry

Load limit

45 kg – 100 lbs

Design factor

7:1 ratio

Dimensions

328 x 846 x 82 mm – 12,91” x 33,31” x 3,25”

Net weight

3,3 kg – 7,28 lbs

OPTIONAL ACCESSORIES

WBM-1
CMT-HS

COMPABILITY

SR-5152
