WBM-500

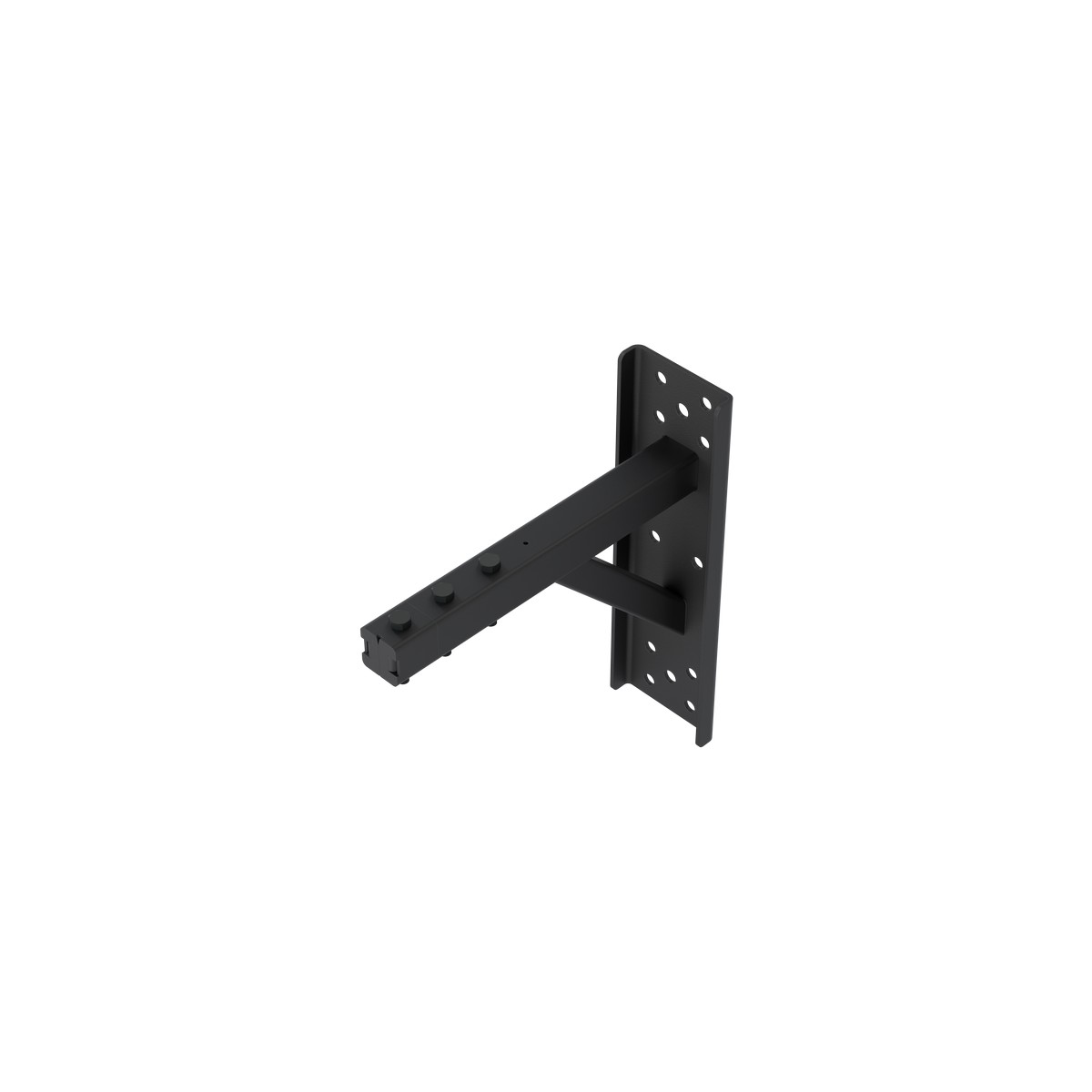

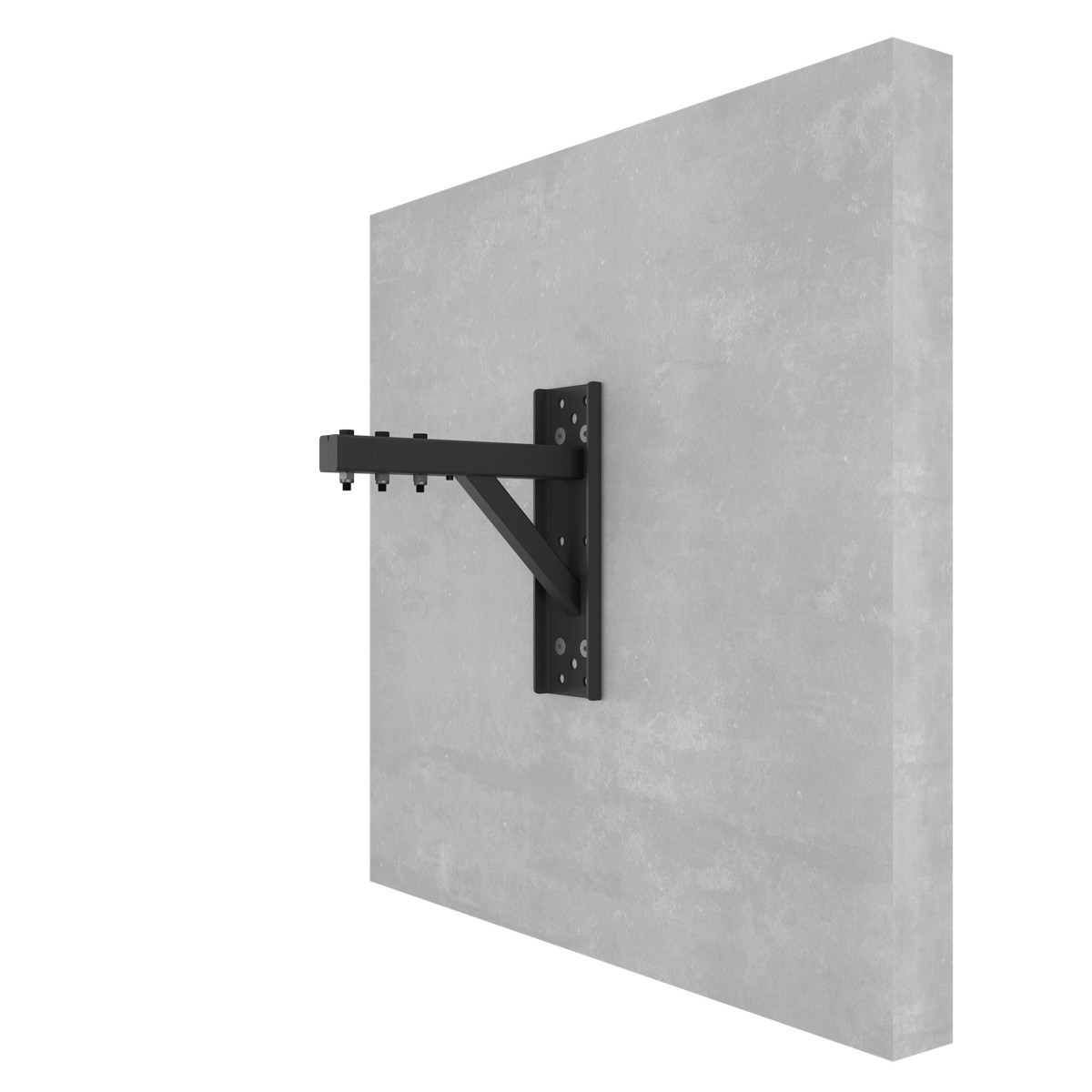

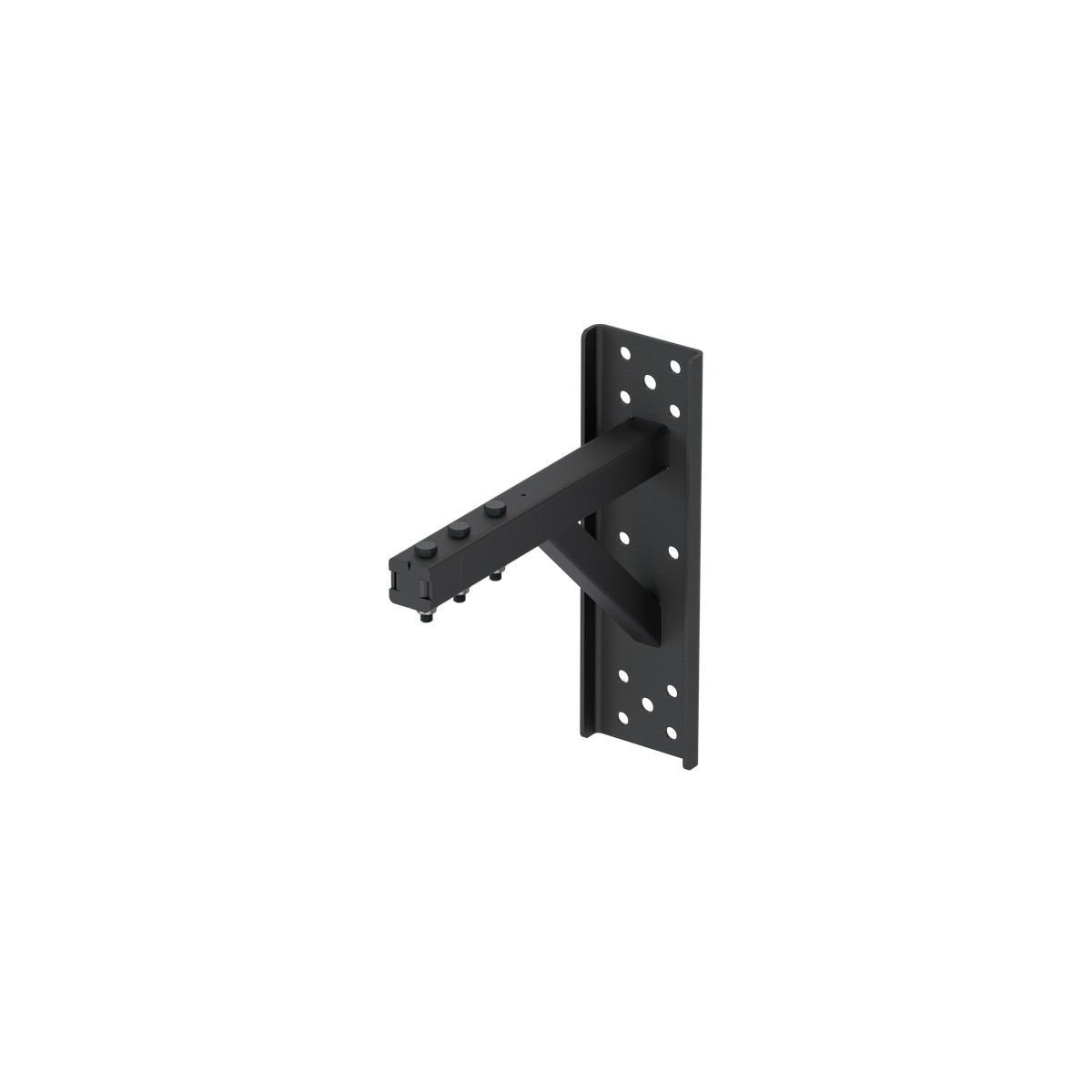

The WBM-500 is a universal wall mounted horizontal distance beam with M10 mounting points for U-brackets etc.

This wall beam supports loudspeakers weighing up to 45 kg (100 lbs.) and comes with a design factor of 7:1.

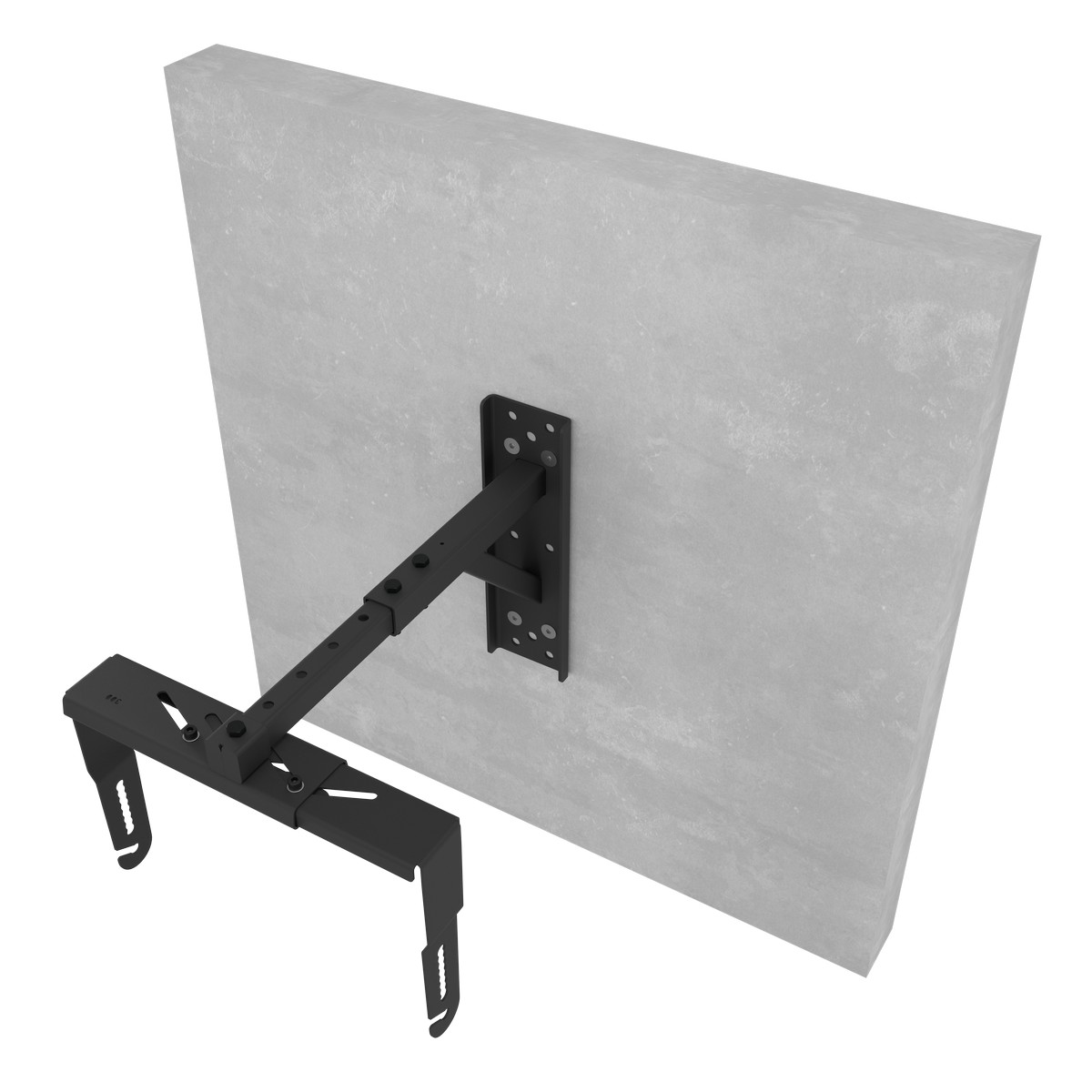

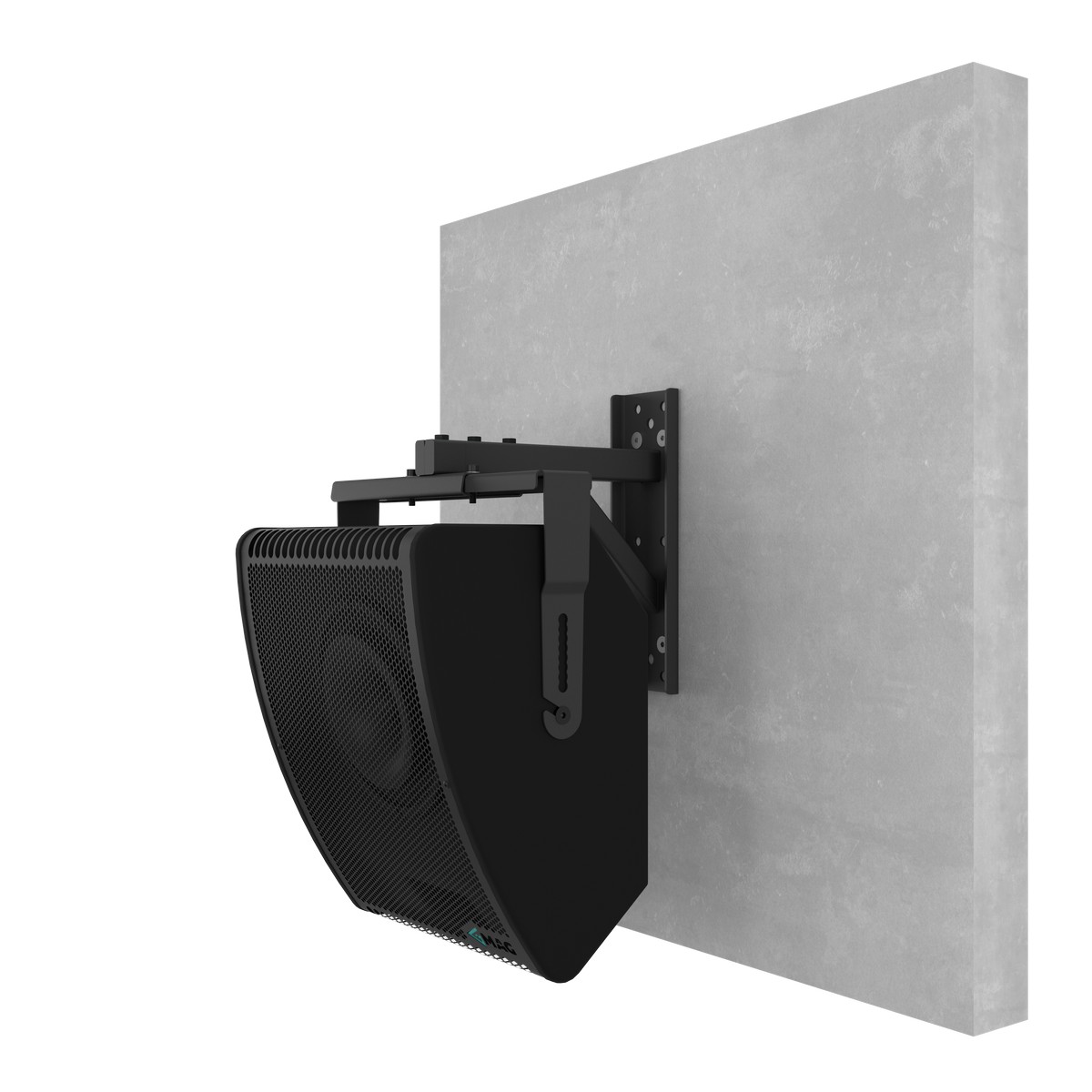

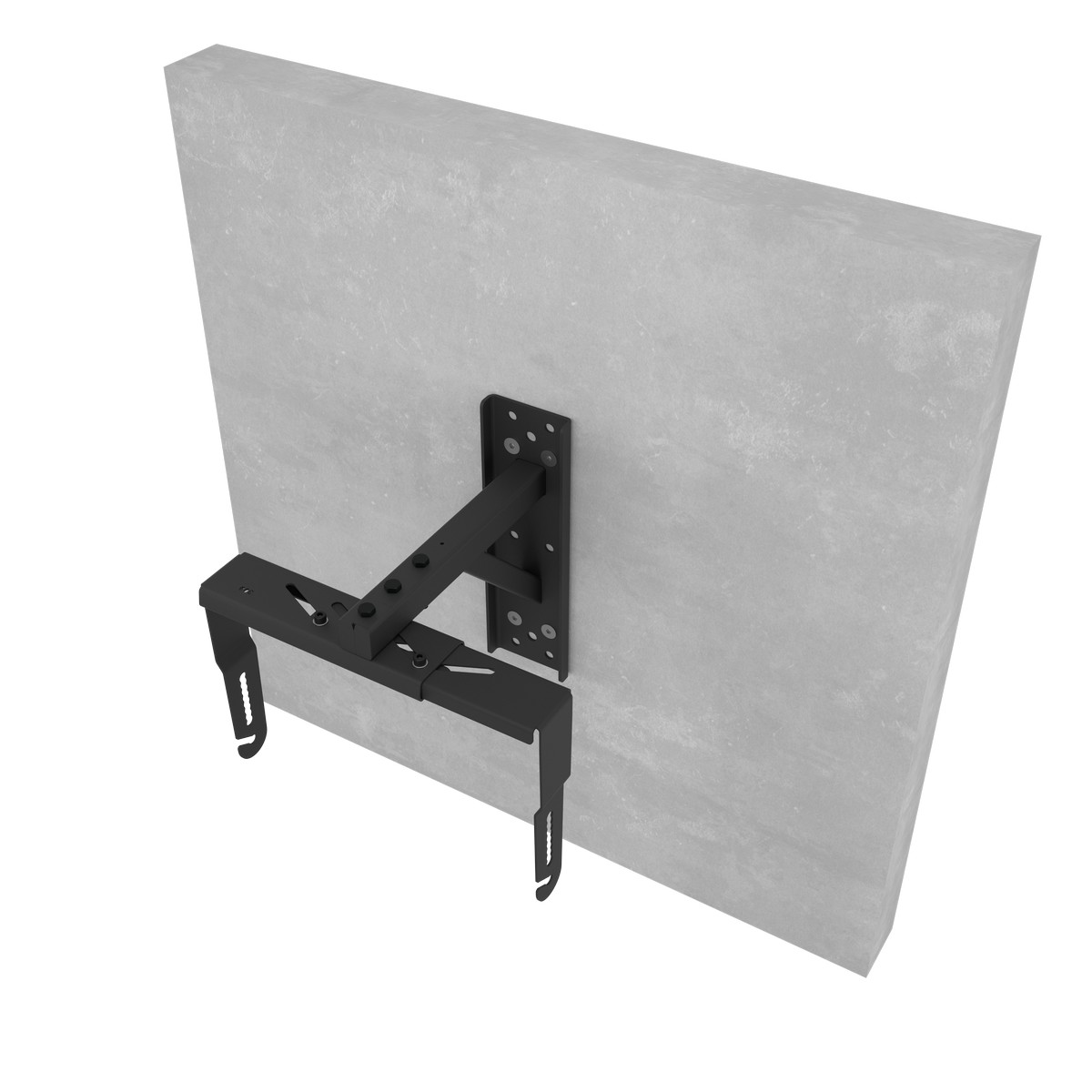

Loudspeaker can easily be attached and aimed from walls and other vertical structures by way of the U-bracket with ease of installation and flexibility in djustment.

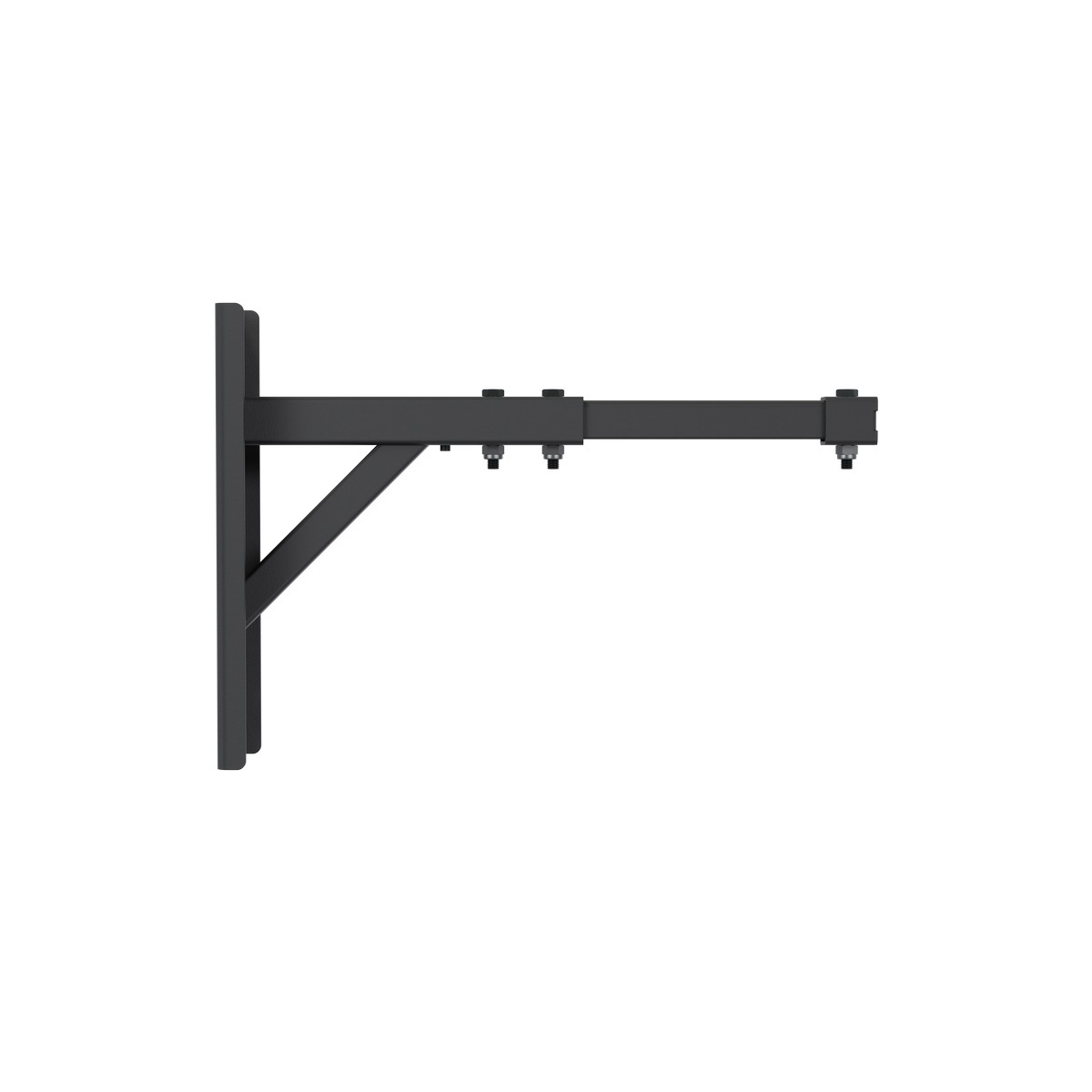

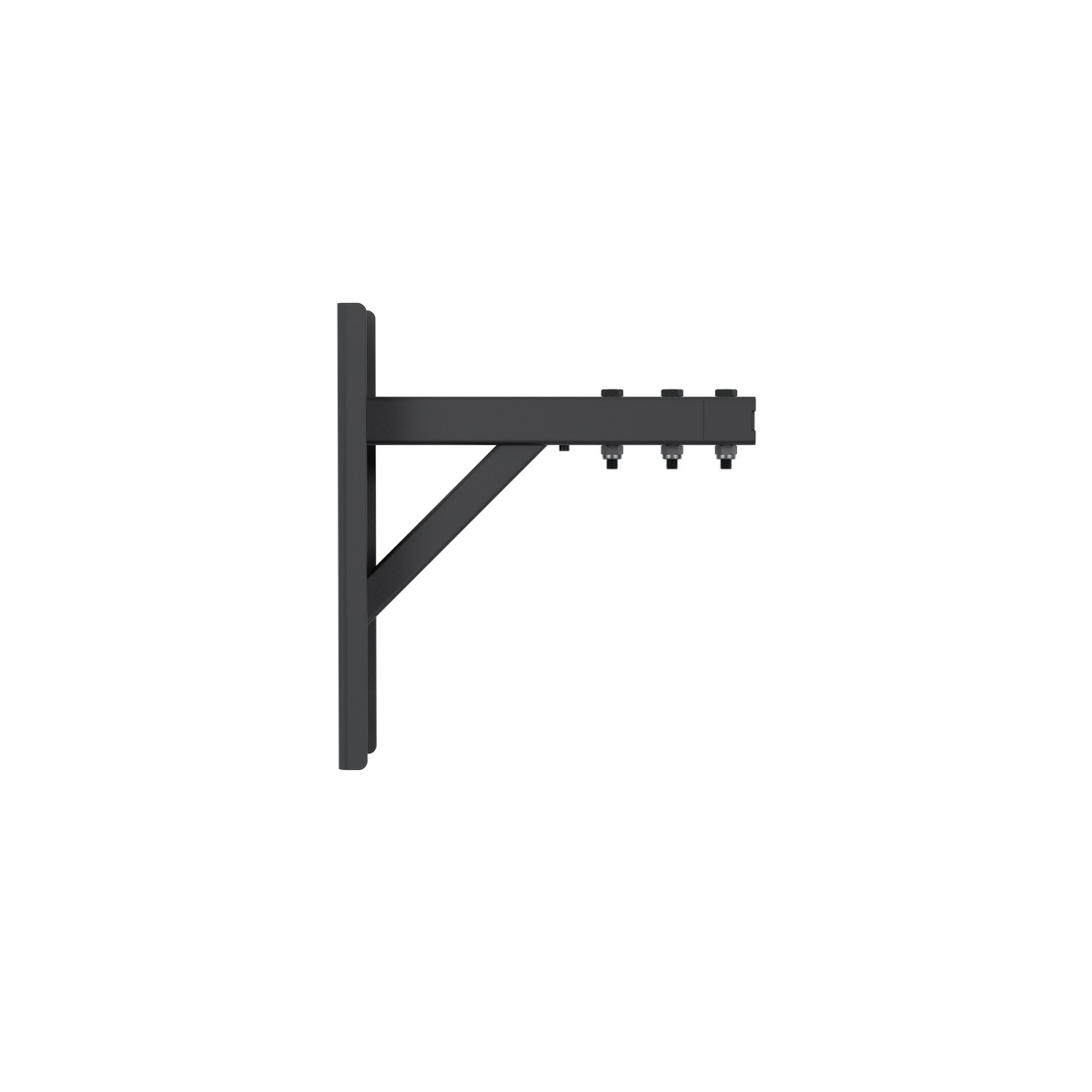

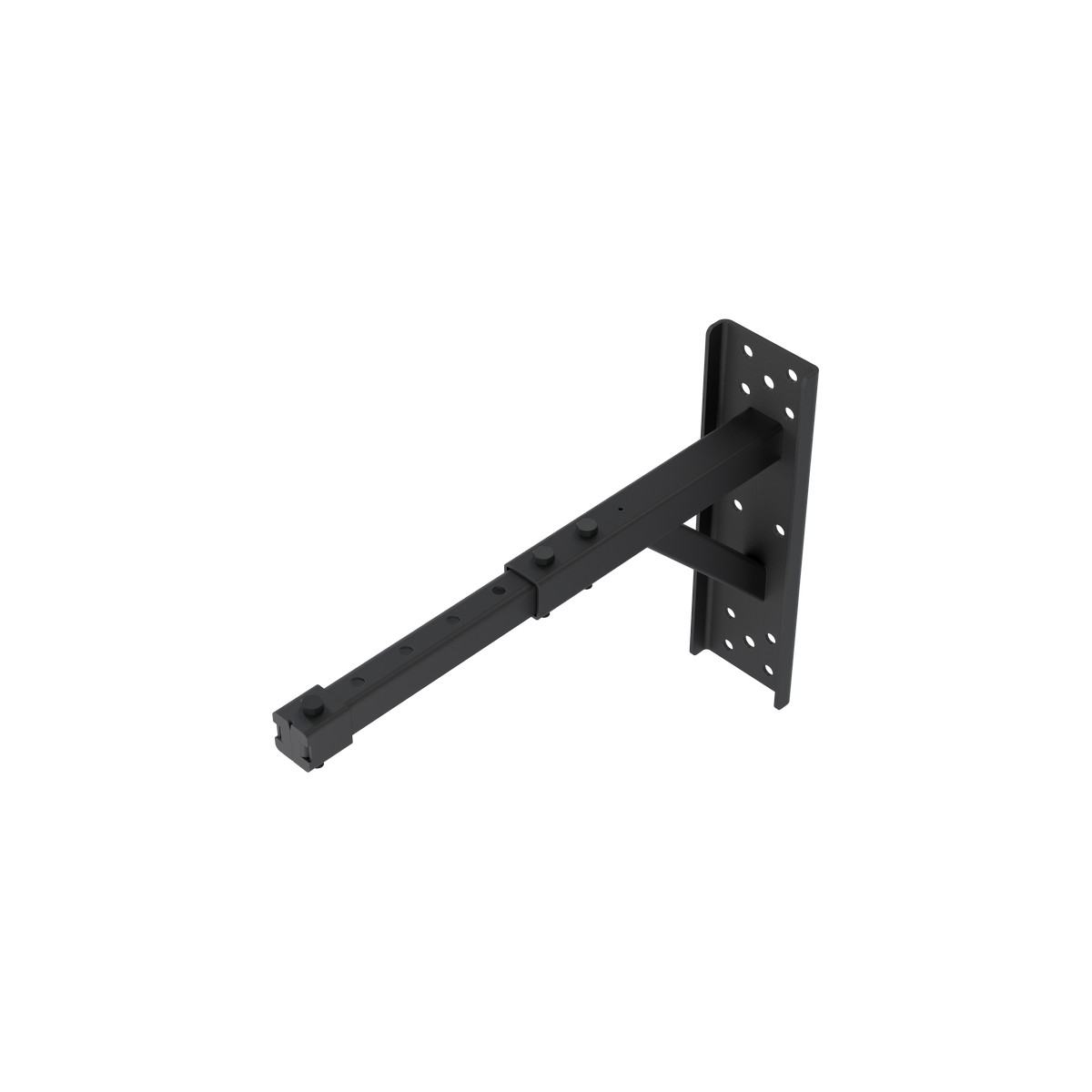

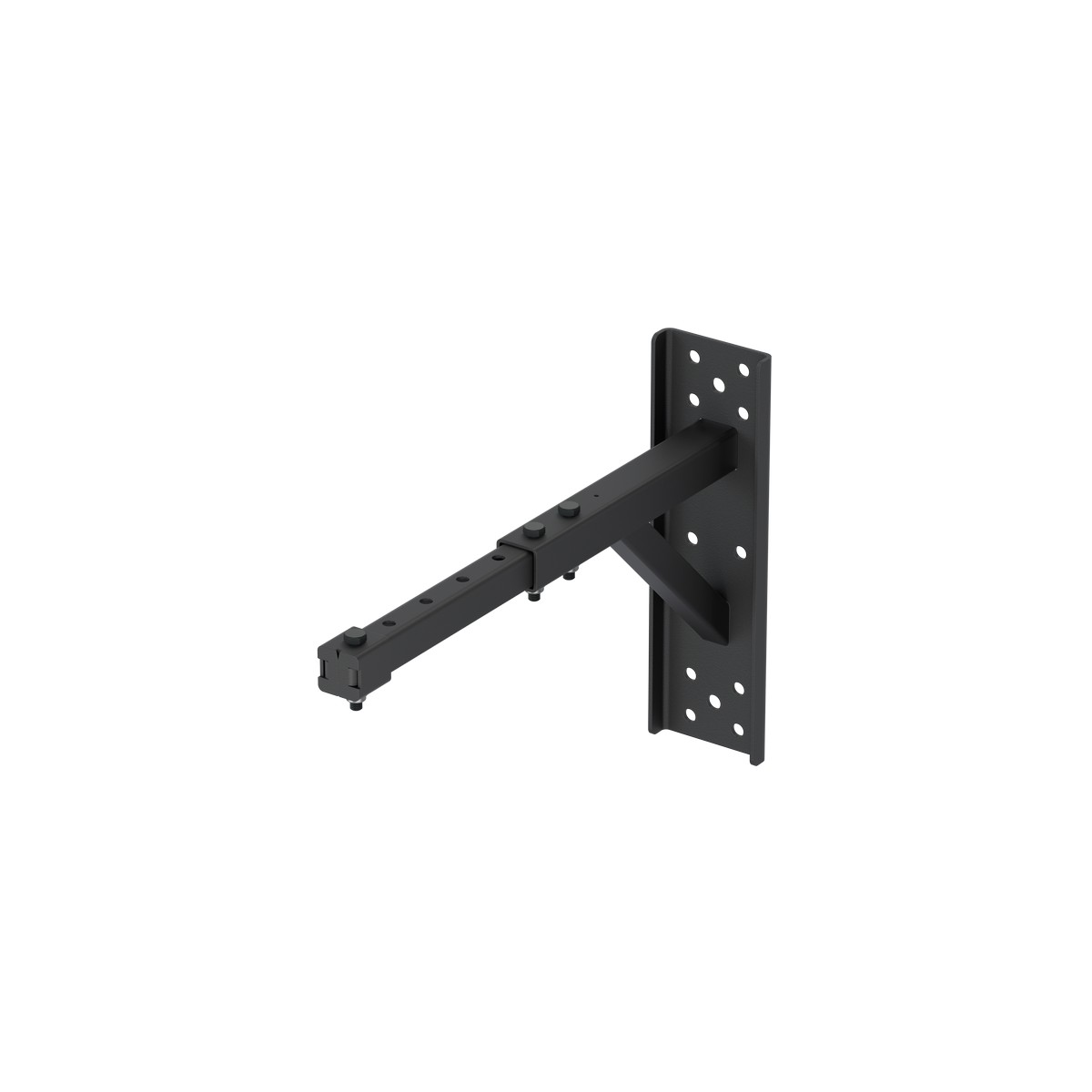

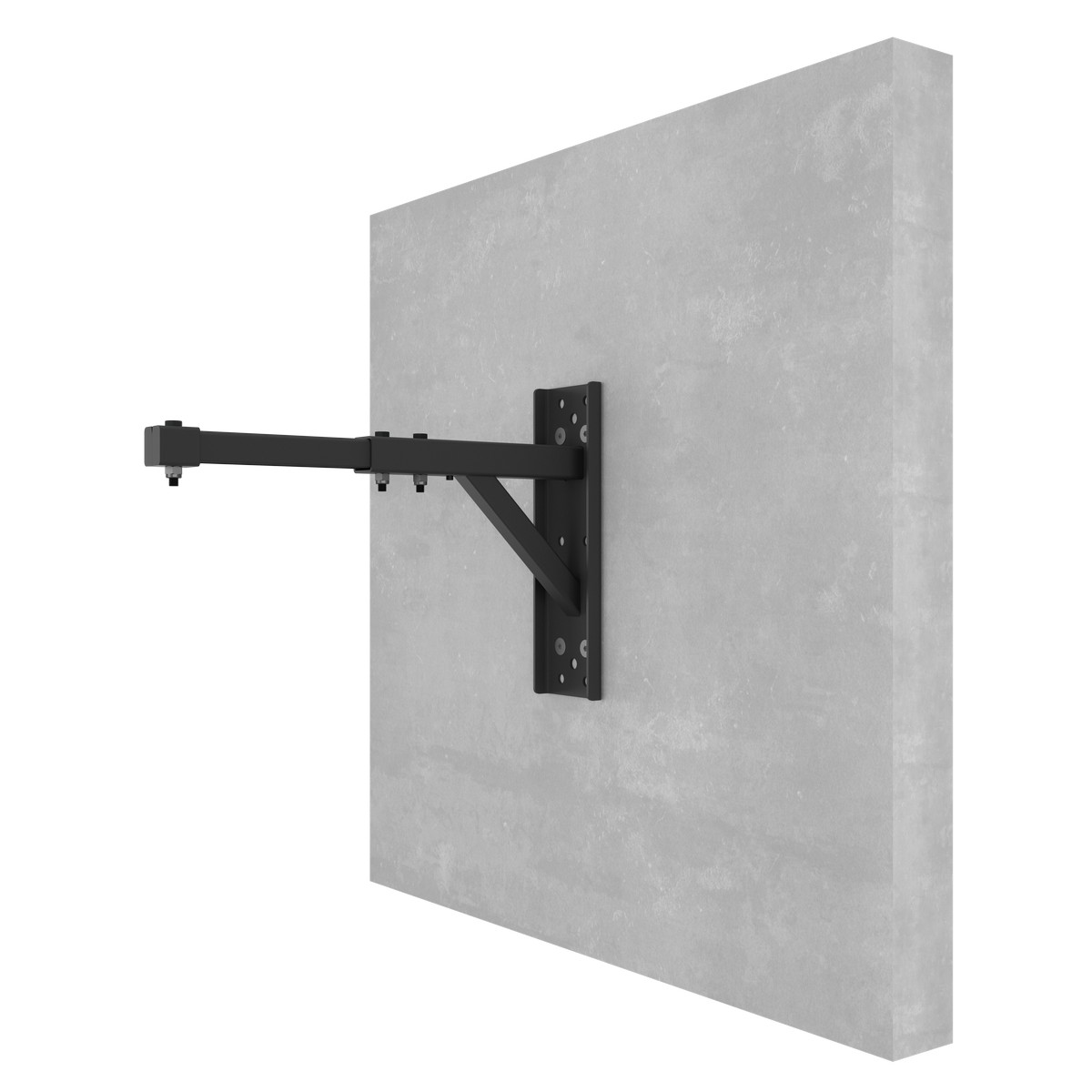

The WBM-500 has features adjustable length 320 mm (12,60”) – 520 mm (20,47”), with the step of 50 mm (1,97”).

request a price

Description WBM-500

Loading file
  • Fullscreen
  • Wireframe
  • Zoom In
  • Zoom Out
  • Rotation
  • Screenshot
  • Help

Controls

×
  • Rotate with the left mouse button.
  • Zoom with the scroll button.
  • Adjust camera position with the right mouse button.
  • Double-click to enter the fullscreen mode.
  • On mobile devices swipe to rotate.
  • On mobile devices pinch two fingers together or apart to adjust zoom.
  • On mobile devices 3 finger horizontal swipe performs panning.
  • On mobile devices 3 finger horizontal swipe performs panning.

Additional information

Functions

Wall mounted beam

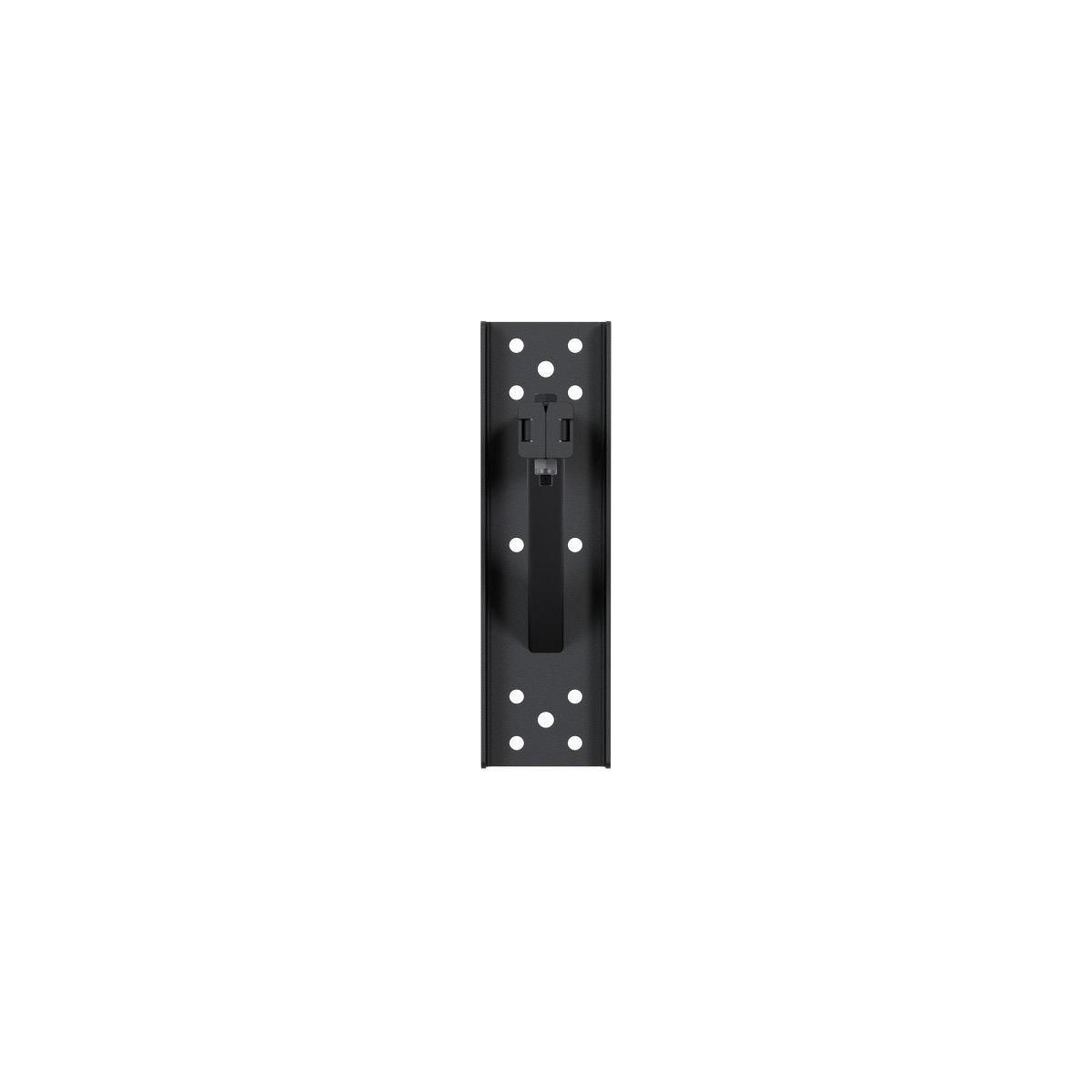

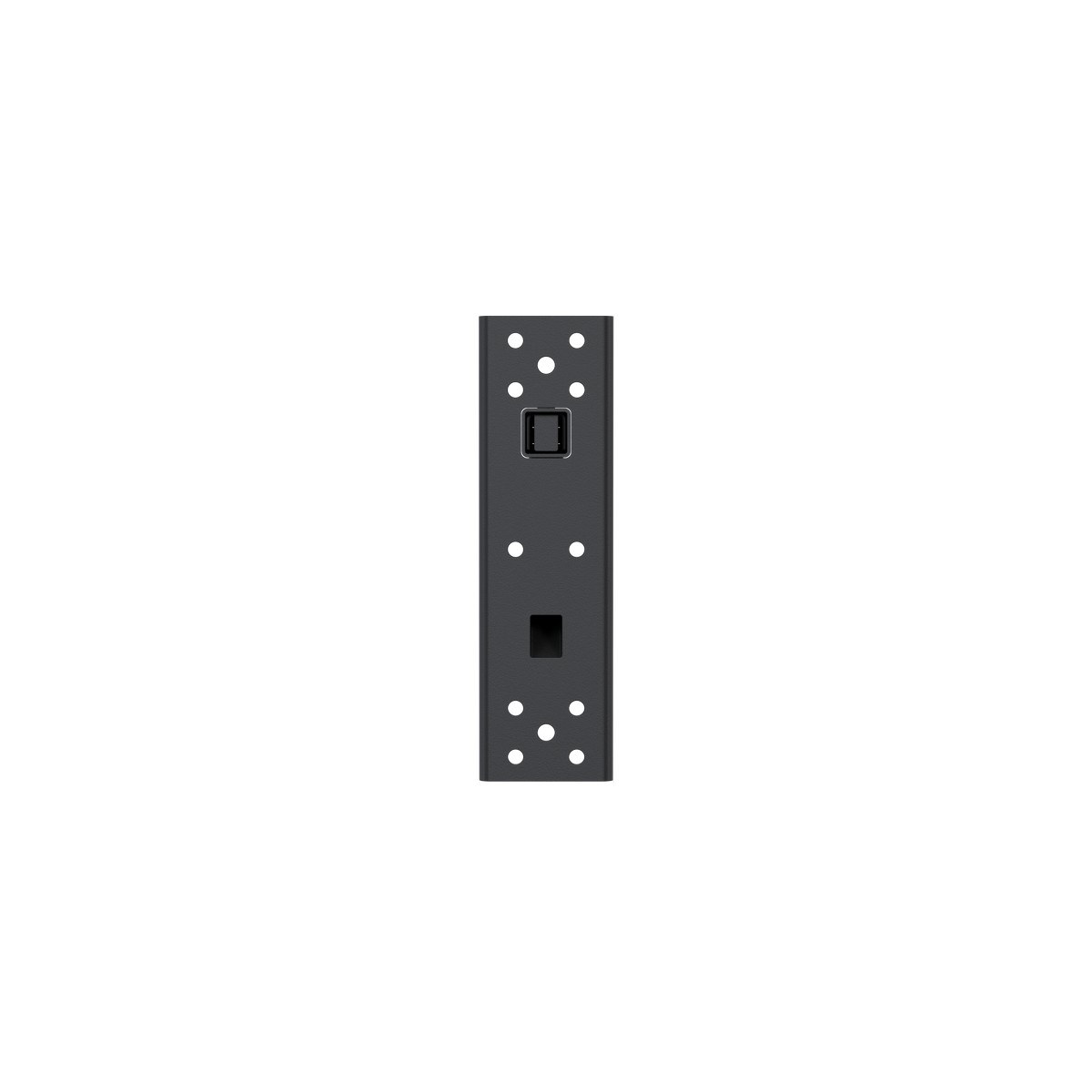

Wall mounting plate

380 x 110 mm – 14,96” x 4,33”

Features adjustable length

320 – 520 mm – 12,60” x 20,47”

Mounting holes

M10

Load limit

45 kg – 100 lbs

Design factor

7:1 ratio

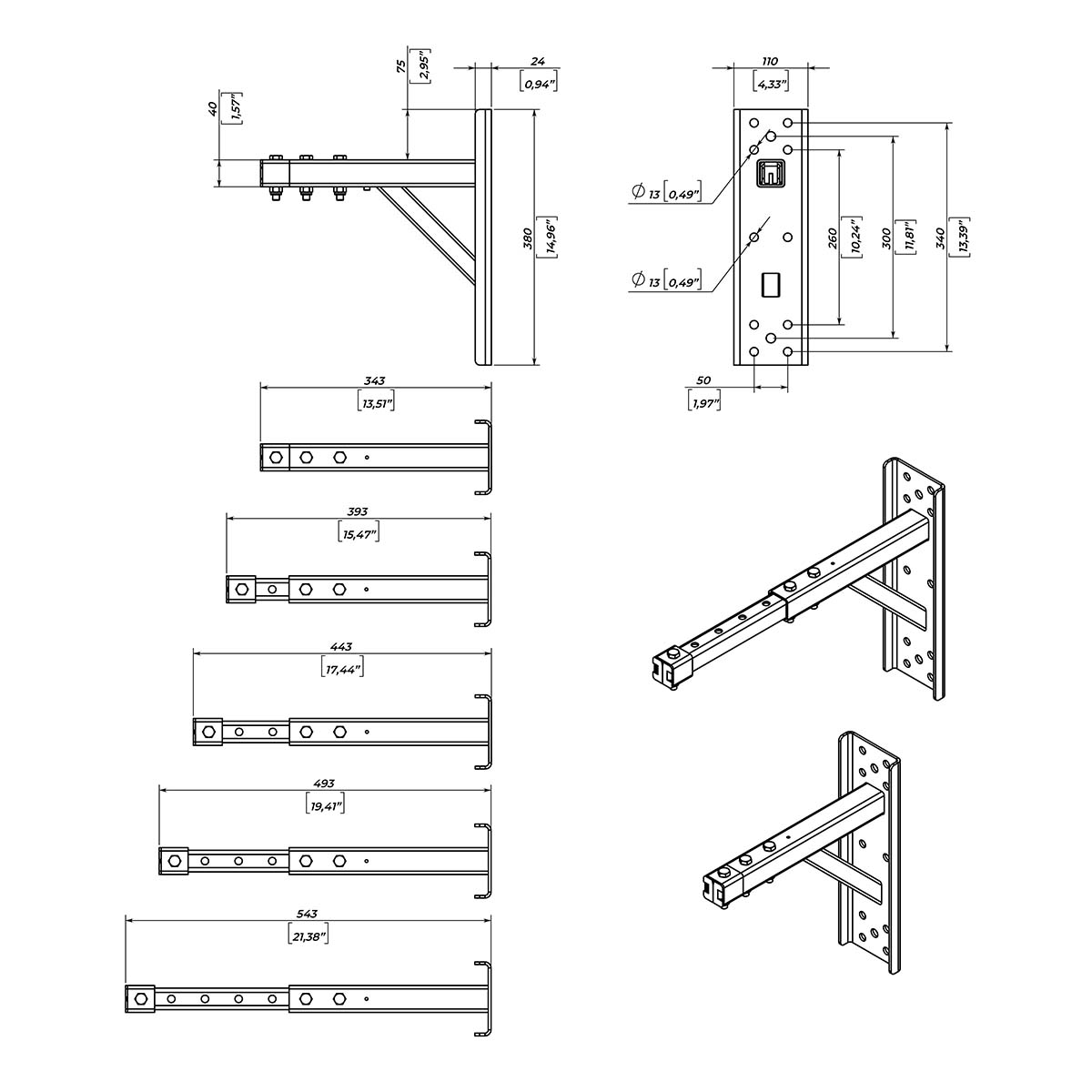

Dimensions

344 x 380 x 110 mm – 13,54” x 14,96” x 4,33”

Net weight

3,63 kg – 8 lbs

OPTIONAL ACCESSORIES

UBR-300
UBR-414
UBR-500
UBR-816
LA-705
and other U-brackets
